Waterway Poly Storm Vinyl Liner Jet Body 1.5"S x 0.5"S - THREADED Style - White

Waterway Poly Storm vinyl liner spa jet body. THREADED Style - White

1.5" / 40mm socket connection for water x 0.5" / 15mm socket connection for air.

Suitable for vinyl liners and overall wall thickness not exceeding 30mm

Suited to the use of manifolds and flexible tubing to enable quick easy installation without limitations on proximity to each other that other plumbing systems are restricted by.

98mm diameter face,
75mm diameter hole size required,
0-30mm wall thickness supported
Threaded nut will need to be reversed for wall thicknesses thinner than 26mm
Threaded nut will need the unthreaded smooth round rear cut to access the 0.5" air socket for wall thickesses exceeding 17mm.

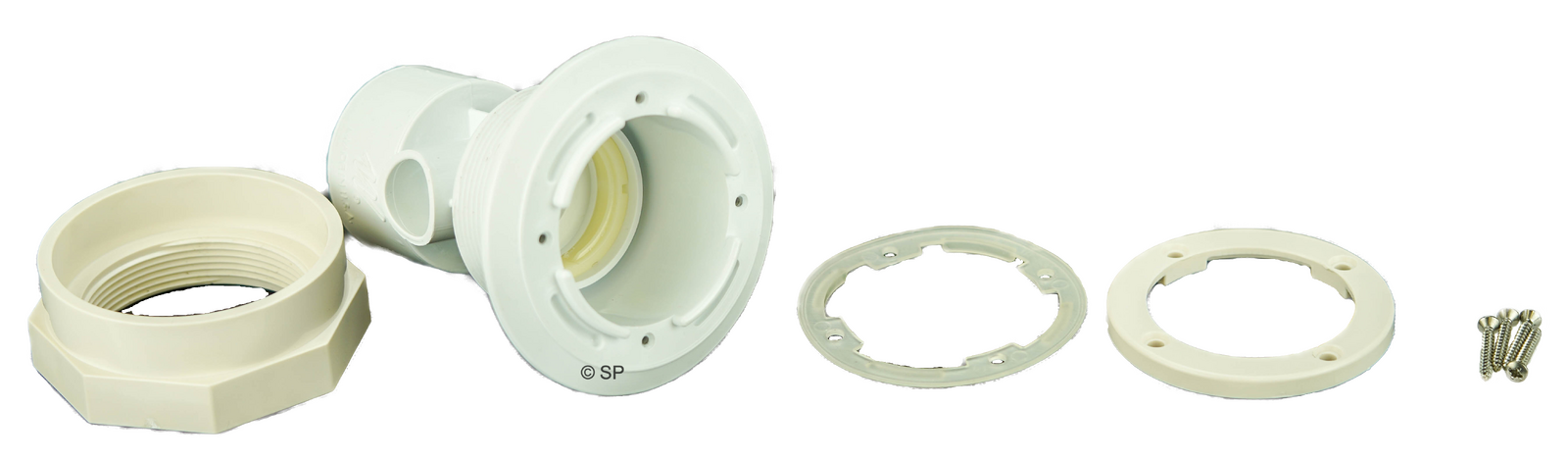

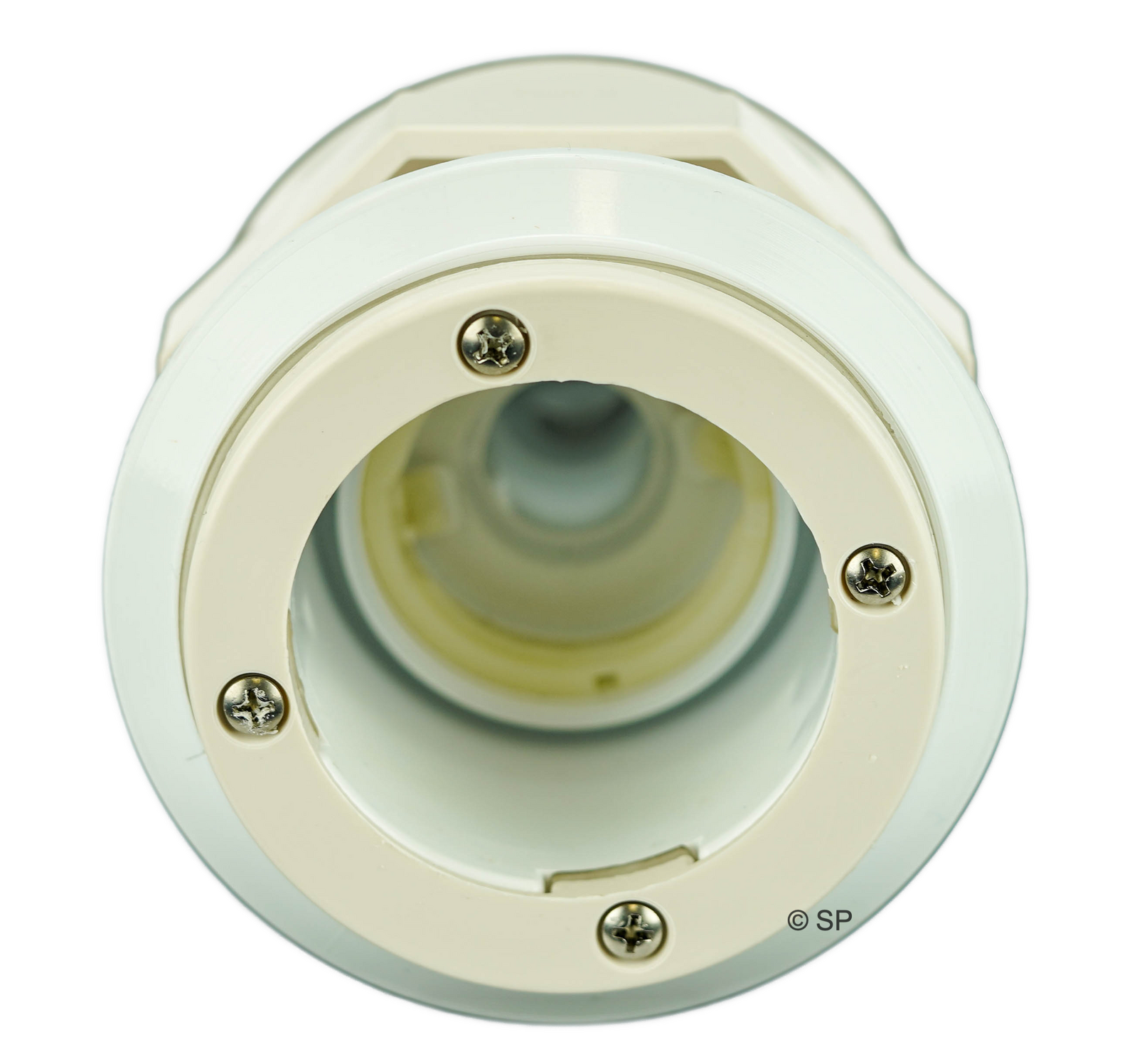

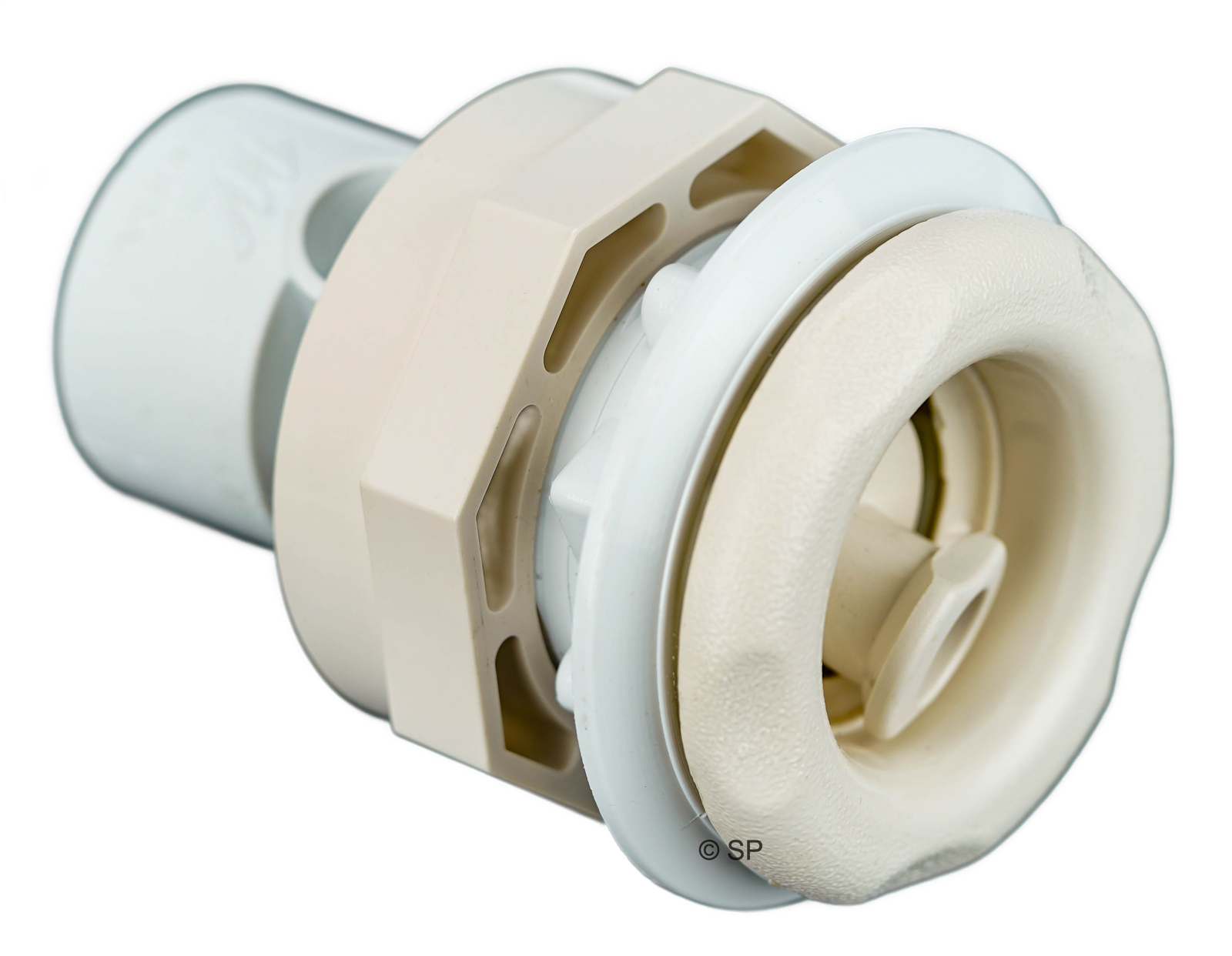

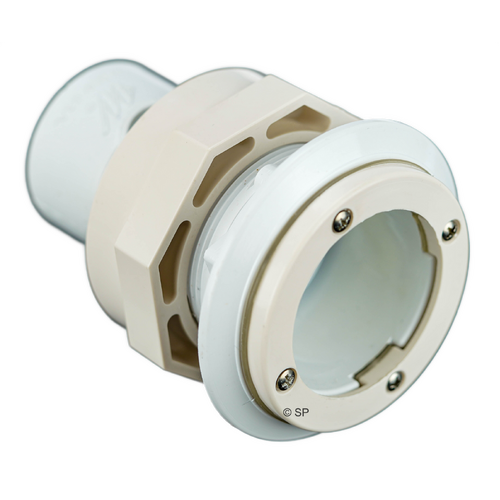

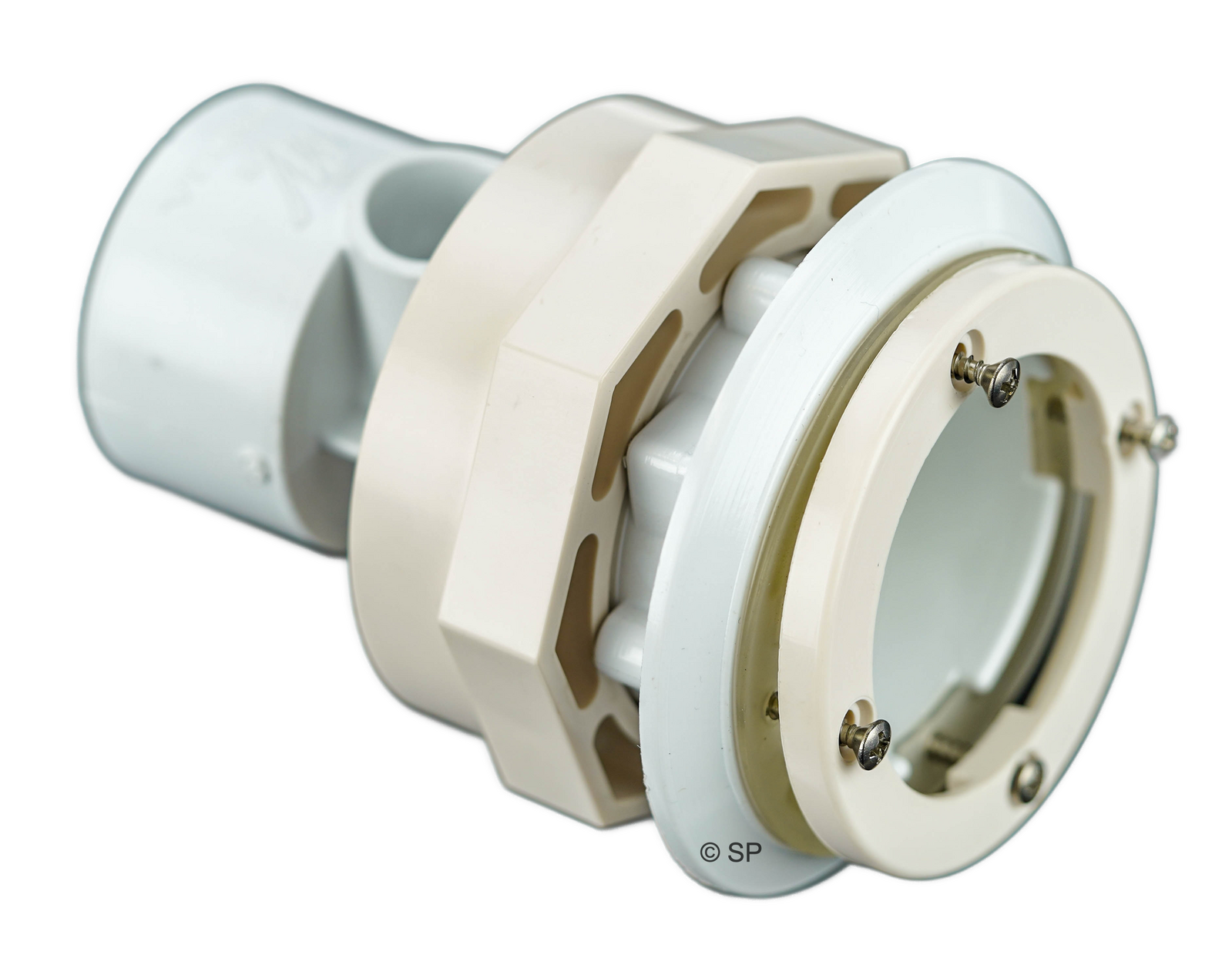

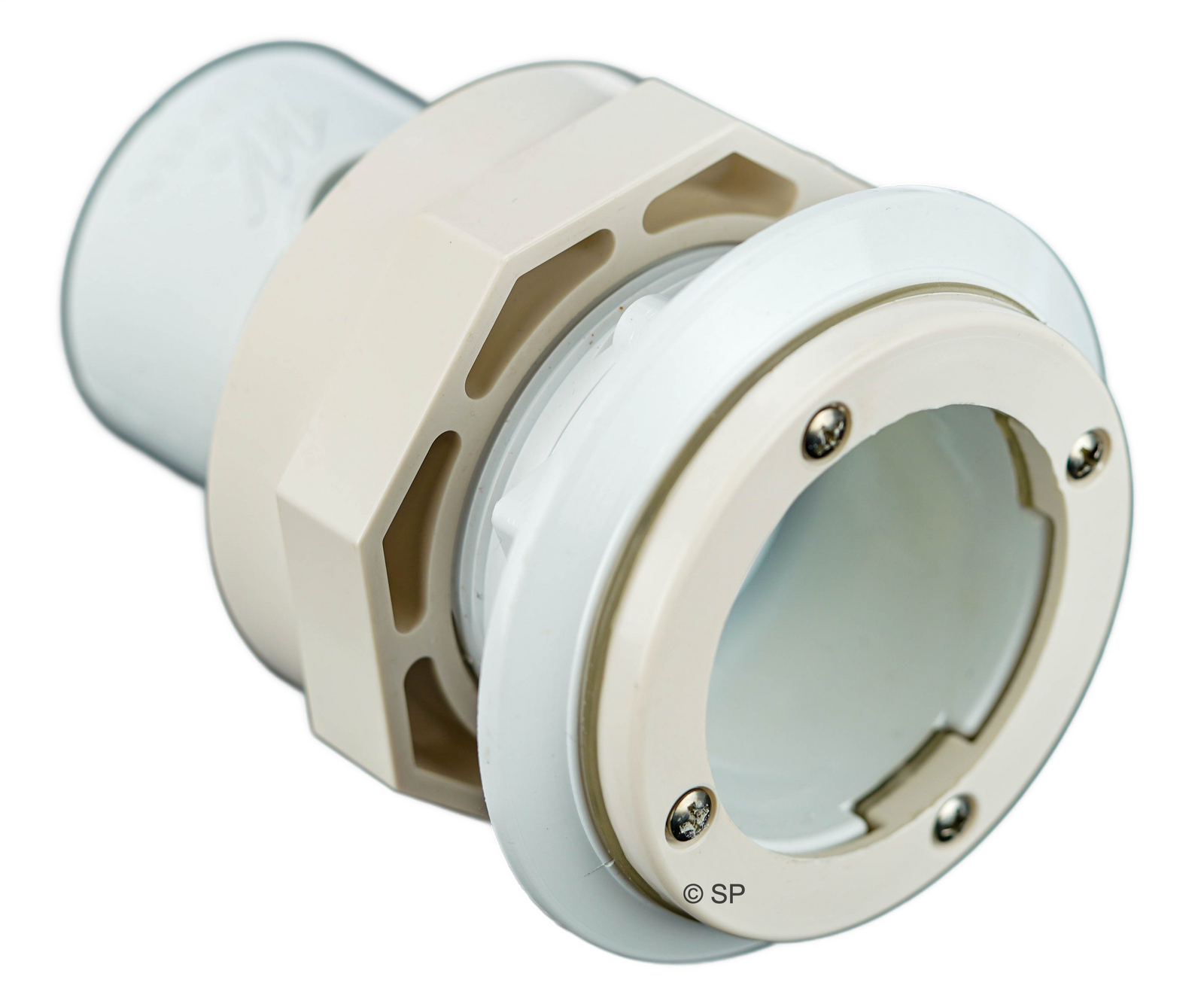

Jet body only (one of the images shows it fitted with a white roto jet face - sold separately)
