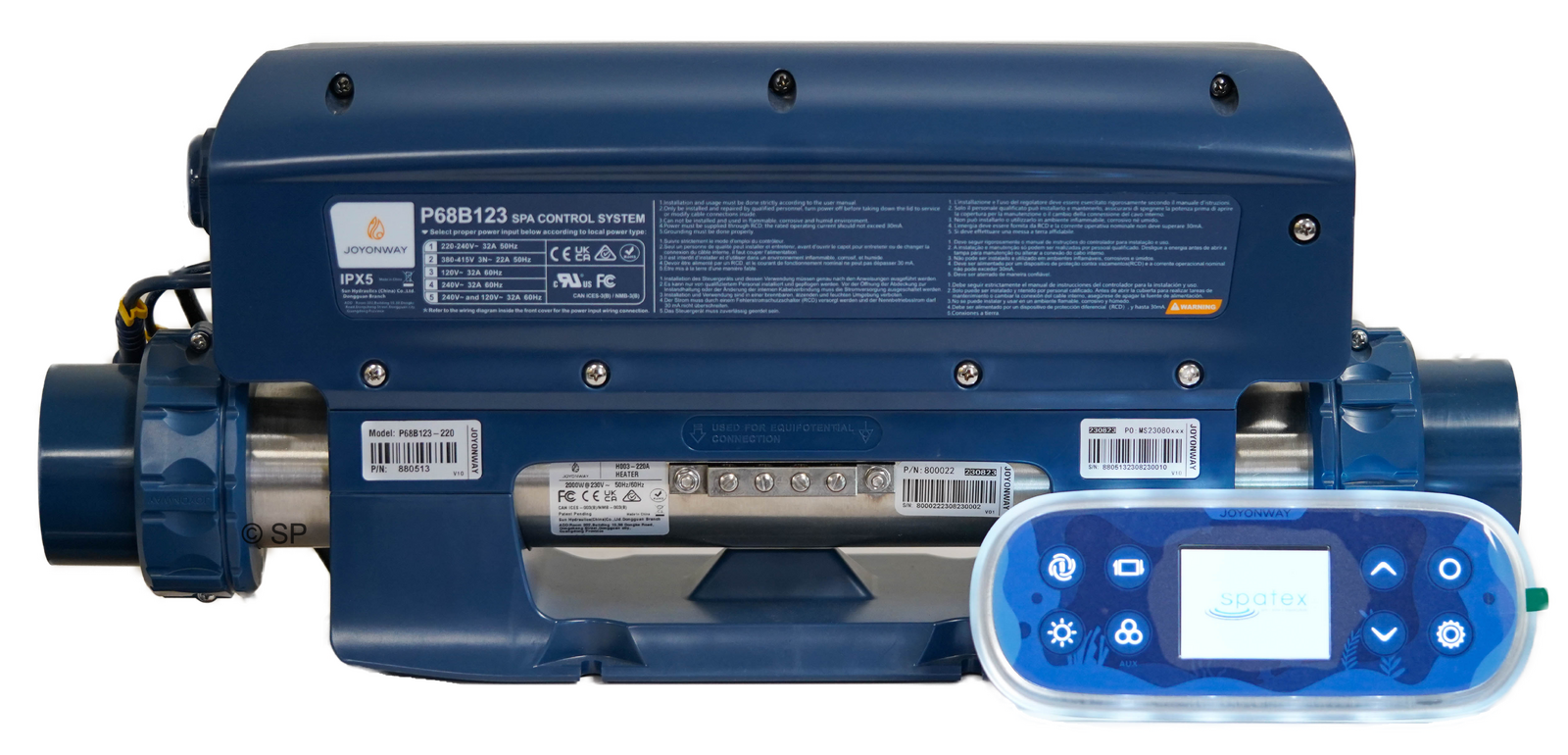

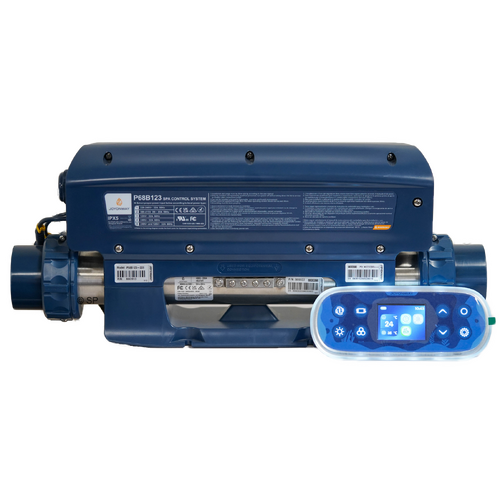

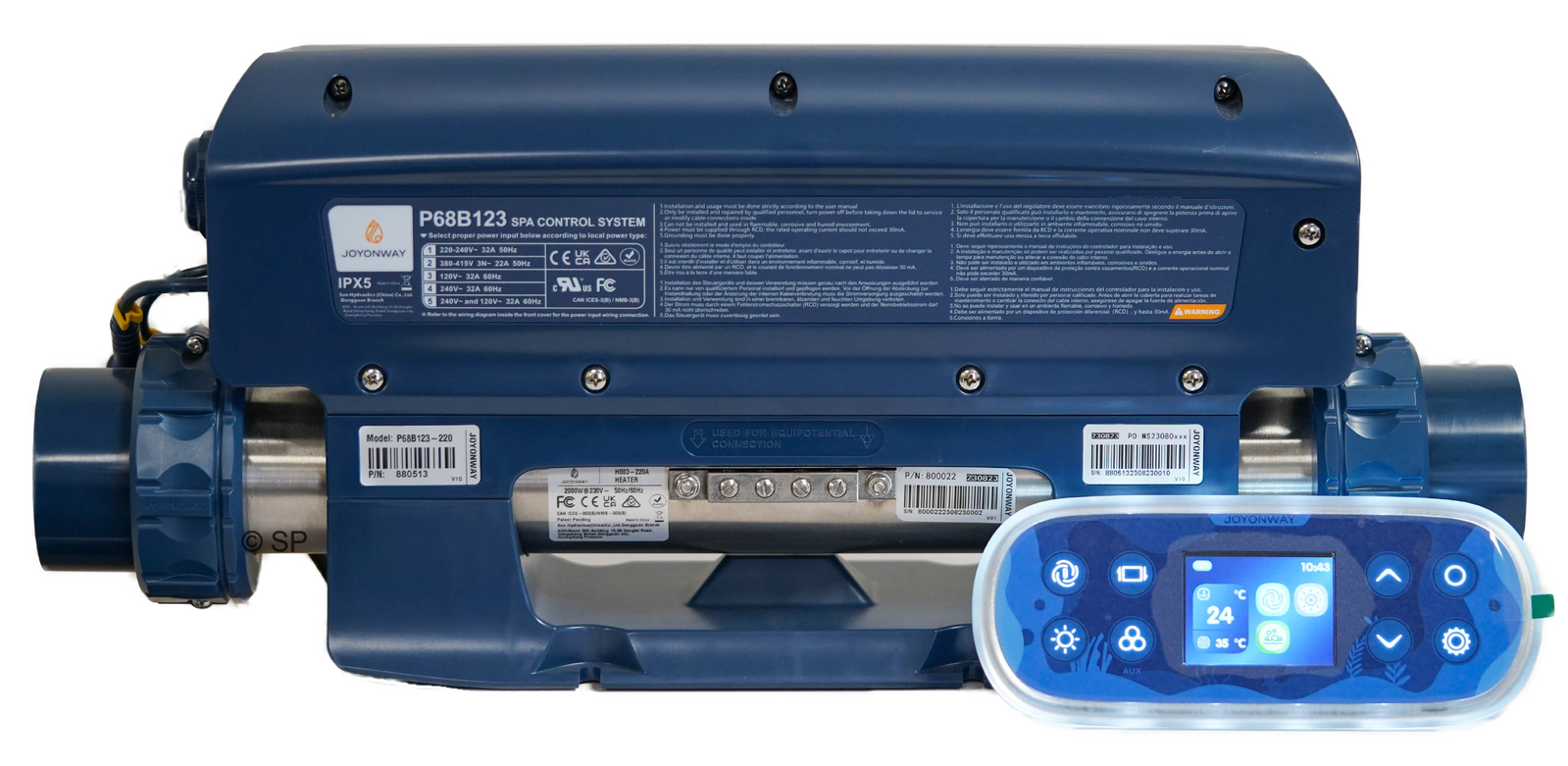

spatex Joyonway P68B123 Spa Pack II with PB562 Capacitive Touch 2.4" colour touchpad - 2.0kw heater

NEW FOR 2024

spatex Joyonway PB562 8 button capacitive touch 2.4" colour LCD screen spa control touchpad / topside control
PLUS
Joyonway P68B123 spa pack II with 2.0kw heater

WiFi optional extra

Capacitive touch buttons only require the lightest touch to operate.
2.4" LCD colour screen - 320 x 240 px
9 language display - English, French, German, Spanish, Portuguese, Swedish, Norwegian, Finnish, Dutch.


Joyonway P68B123 spa control pack
2.0kw heater

Real time energy consumption detection/display
On/Off or RGB spa lighting compatible
IPX5 water/dustproof rating
316L stainless heater tube, with passive process treatment and corrosion resistance.
825 incoloy element with high corrosion resistance.
Custom design element with greater stability, low vibration, installed in the bottom of the tube downward facing to greatly reduce the possibility of dry firing with insufficient water flow.

Can control:
2 speed pump 1 or 1 speed pump 1 with circulation pump - Programming must be set PRIOR to connection any 2 speed pump.
Air blower or Jet Pump 2,
Ozone,
Light.

Jet pump - 10A max load
Circ pump - 2.5A max load
Blower/Jet Pump 2 - 10A max load
Light 12v, 1A  max load
220-240v, 50/60Hz, 10A-32A max single phase

Spa Pack - 380mm wide x 205mm high x 100mm deep
Touchpad - 188mm x 77mm x 7mm thick above spa shell, requires a 167mm x 58mm hole - rounded ends, 1800mm lead
