spatex Auto Off Timer Switch with White electronic round Single Button touchpad - electronic - 1 x 10A output

White single button universal round touchpad with momentary switch button

Electronic airswitch alternative - single 10A output

Can be used on above ground spas, installed in a dry location. (cannot be used in-ground or damp location)

Touchpad Dimensions:
52mm diameter top,
28mm diameter hole required.
10m long data cable included

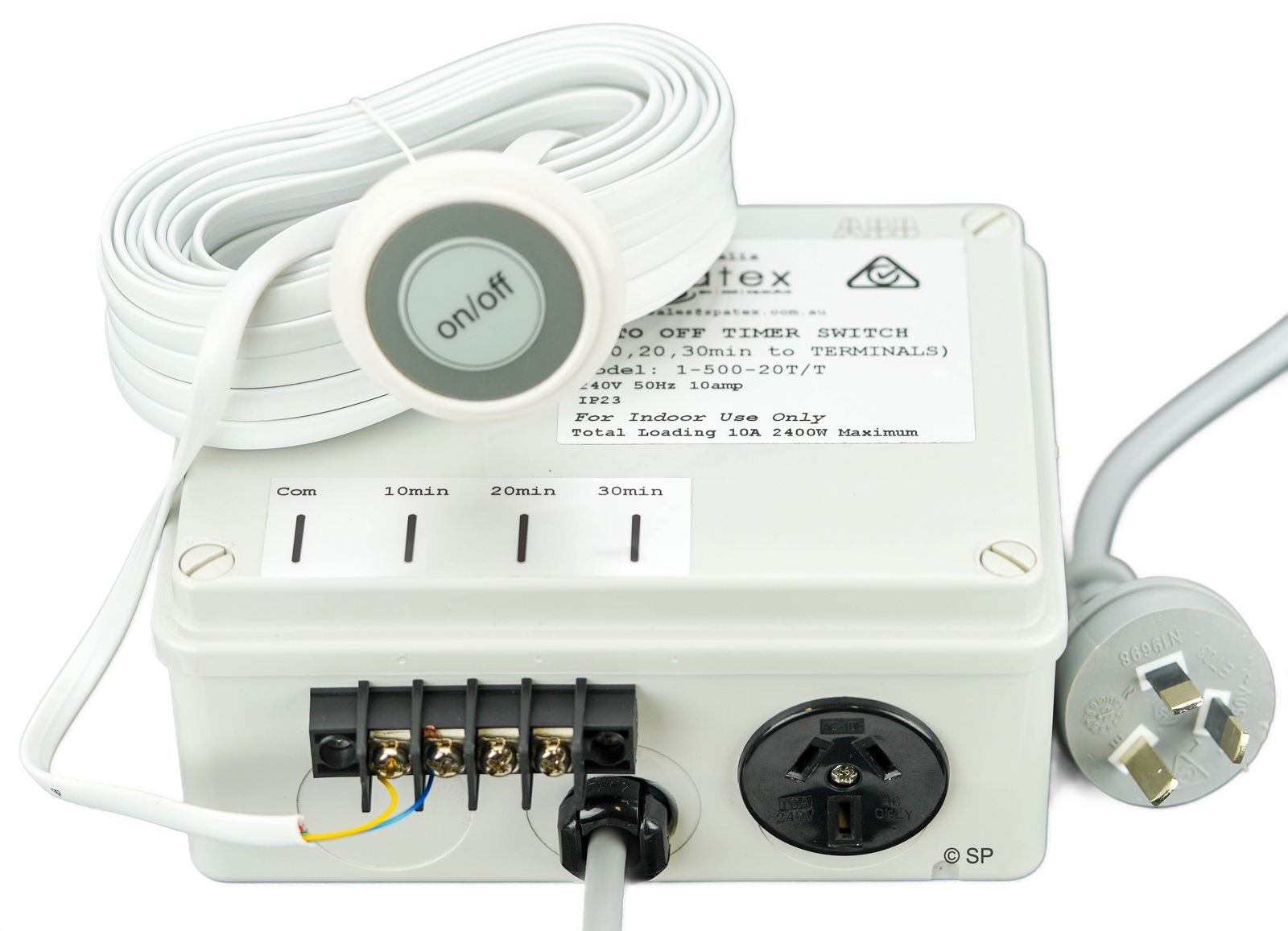

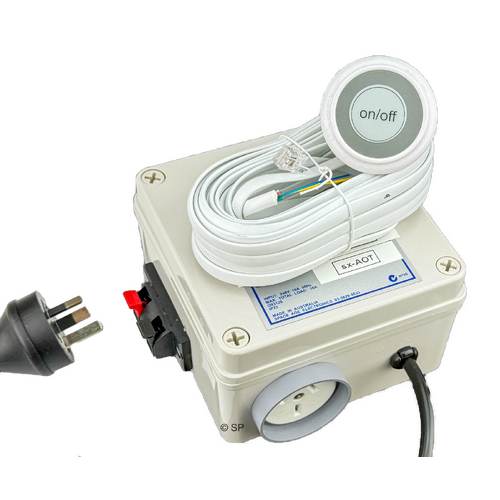

spatex electronic auto off timer control box.
Supplied with terminals for 10, 20 or 30min time off delay function. Select the time required and connect the electronic button to the corresponding terminal.

Wiring connections:
Com - Common / Yellow wire
10, 20 or 30 - Blue wire (select which time off period is desired)

Recommended time off delays:
Air blowers - 10 min
Water pumps 20 or 30 min
