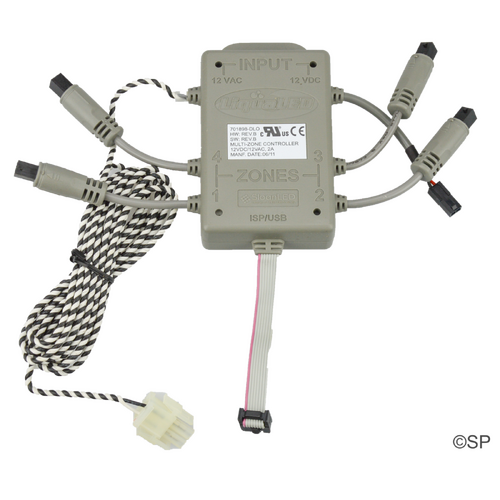

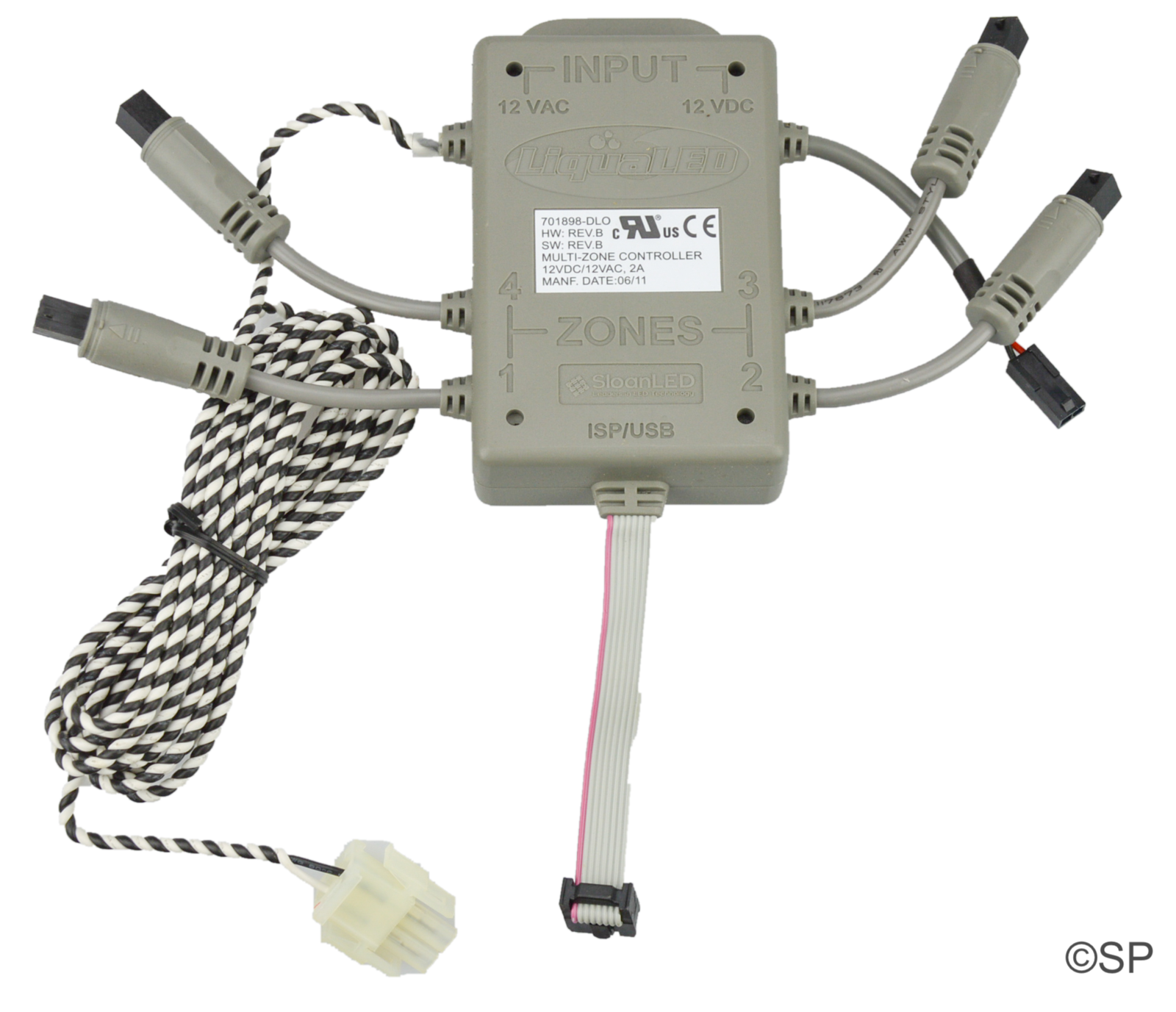

Sloan LiquaLED Multi-Zone Controller - 4 zone LED spa light control

$275.00
In Stock

38 In Stock

SKU:
sloan701898-dlo
Brand:
Shipping:
Calculated at checkout


Product Description

The ULTIMATE LED spa lighting controller!
Sloan LiquaLED Muti-Zone Controller - up to 100 LED controller

12v AC input required up to 1000mA (approx 50 LED's), additional 12v DC input required up to 2000mA (approx 100 LED's) - Stereo power supply or separate 12v DC power supply required - 12v DC output to 4 separately customisable LED lighting circuits.
Connect to spa controller 12v AC light output or transformer output.
Control numerous LiquaLED lamps and LED cable assemblies in a 'Daisy Chain' around the spa in up to 4 different uniquely controlled zones.
Multiple LED output lighting effects.
12v DC output, 1000mA total load from combination of cluster and cable assembly LED's.
Customize and define color experience for up to four zones. Independent control of Zones 1 - 4: Each customizable (pre-programmed) with 7 Modes of Operation
SloanLED - provided default behavior or OEM-defined experience for each zone.
Controls and synchronizes all LEDs
Controls up to 100 LEDs
Controlled by spa pack light button
Powered by spa pack 12v AC up to 1000mA or with external 12v DC power supply up to 2000mA
Customized color, brightness, flashing and wheel speed
Compatible with all LiquaLED Cluster Lights, Bullet Lights and Accent Lights
Australian Spa Parts pre-programs the customised lighting sequence from a list of sequence files, or on request we can program to your specifications. As an example of what this controller will do for your spa:
Zone 1 - cabinet mounted lights illuminating steps and surrounds - in all settings - set for white only at full intensity
Zone 2 - bullet lights above waterline - set to alternate green / blue only fading slowly
Zone 3 - Air injector bullet lights - set to flash through 7 different colours
Zone 4 - Waterfall or illuminated jets - set to 60% illumination blue only
The above is an example of just the first of 7 different settings possible for each of the 4 zones.
The options are endless.
Call to discuss further.
Note - although this controller is fully customisable, it is not user customisable - it must be set by Australian Spa Parts prior to supply. For a standard workshop charge, programs could be changed periodically if you wish to change them in the future.
