Signature Spas Swim Spa Top & Bottom Skim Filter Pair 100sqft

Signature Spas Swim Spa Upper and Lower skimmer filter cartridge pair
Used in Front Access skim filters with 2 cartridges on top of each other ( single for 100 sqft, and wide mouth double, for 200 sqft)

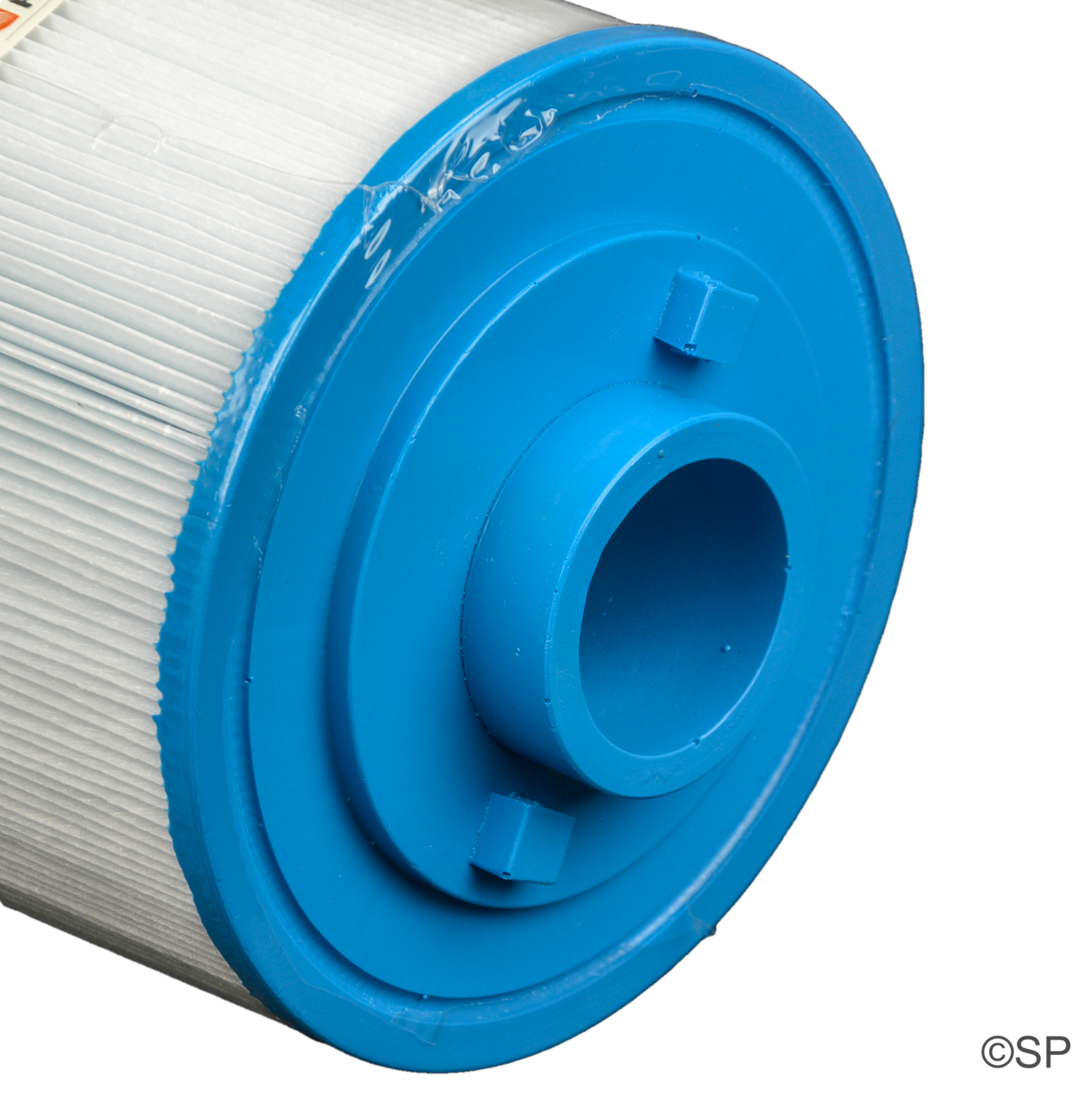

D handle closed top with smooth spigot bottom - to slip inside top of the LOWER cartridge

Total 100 sqft,

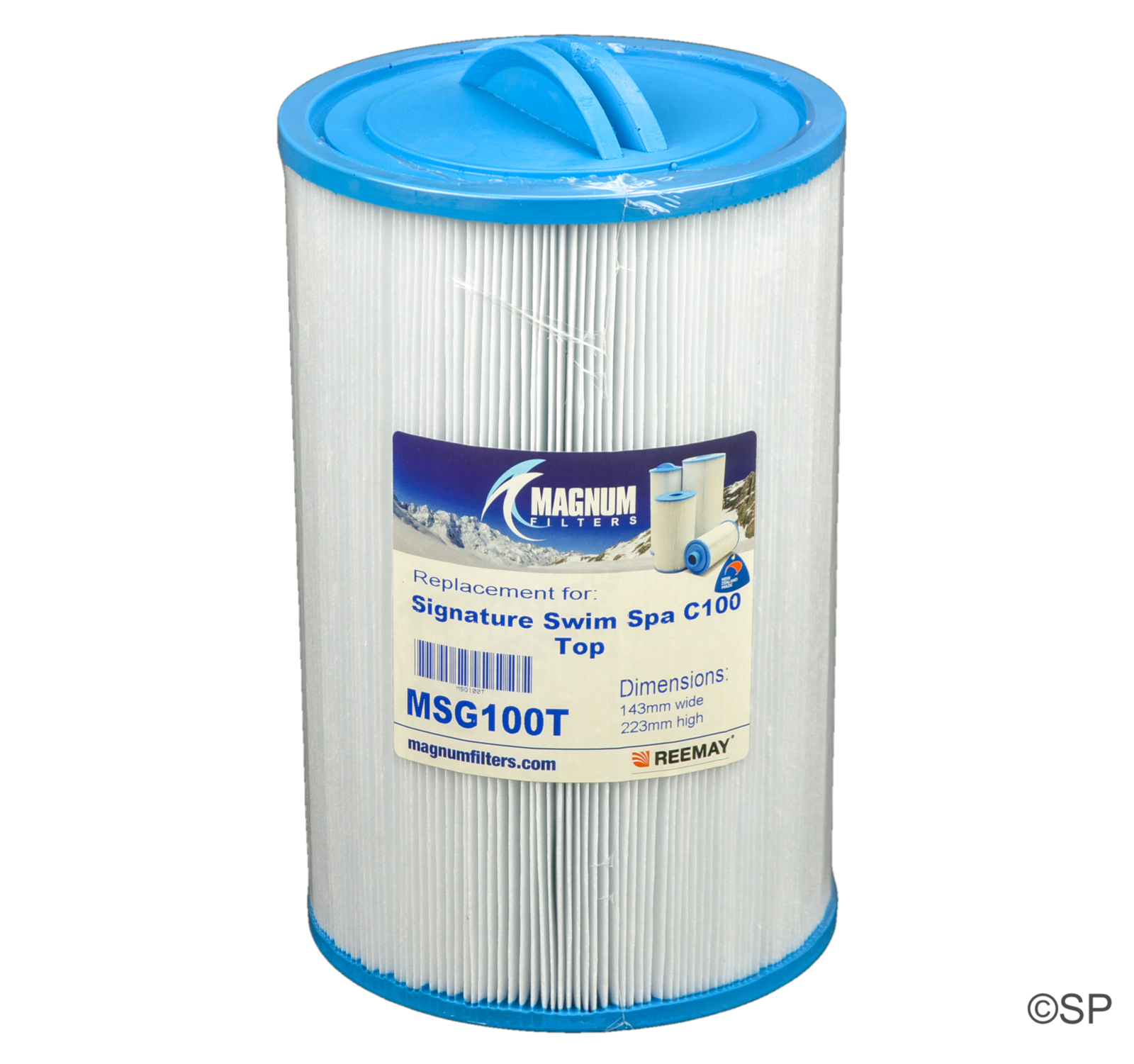

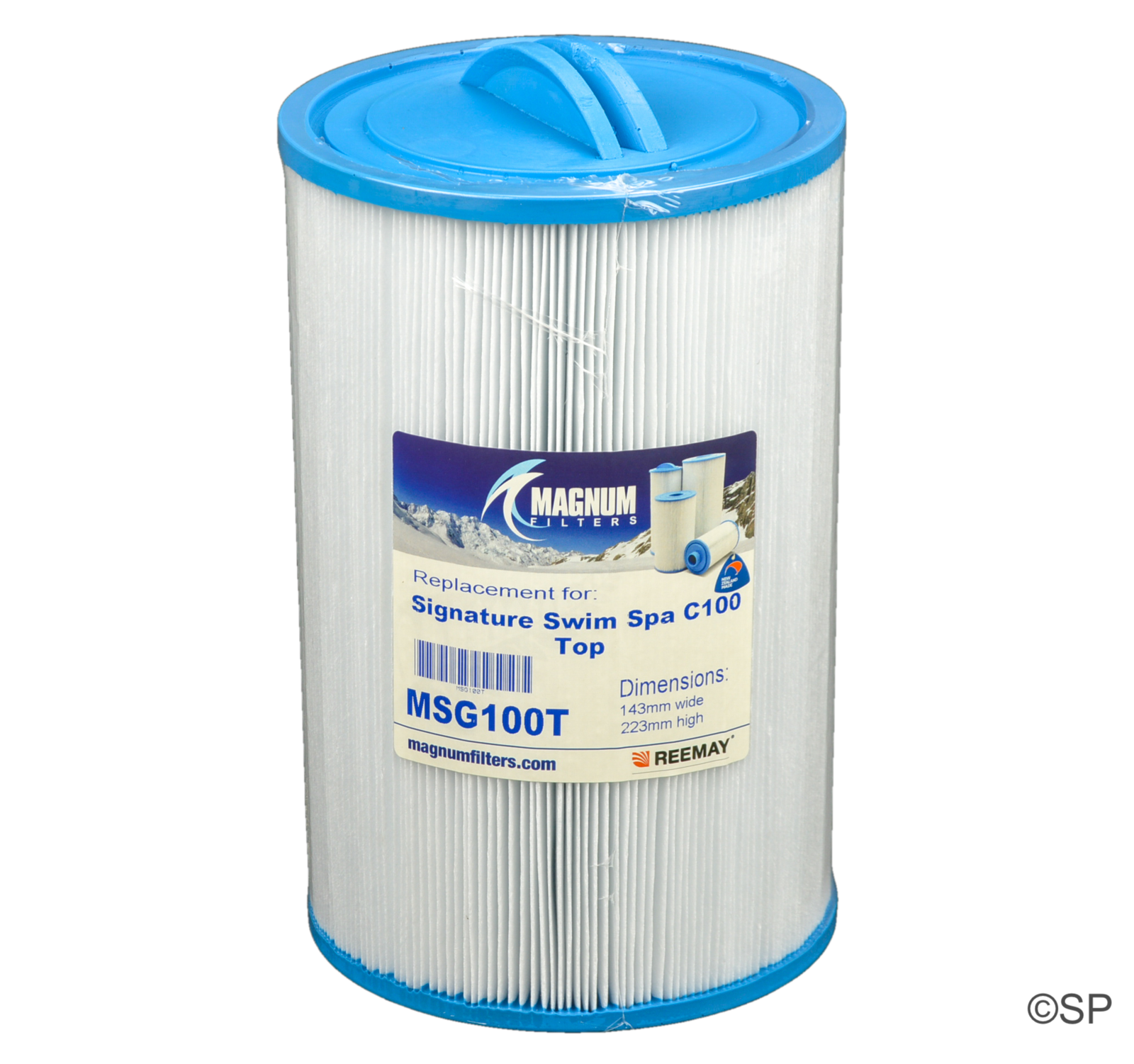

Top - Closed top with D Handle, 225mm L x 145mm diameter. Spigot diameter of 53mm

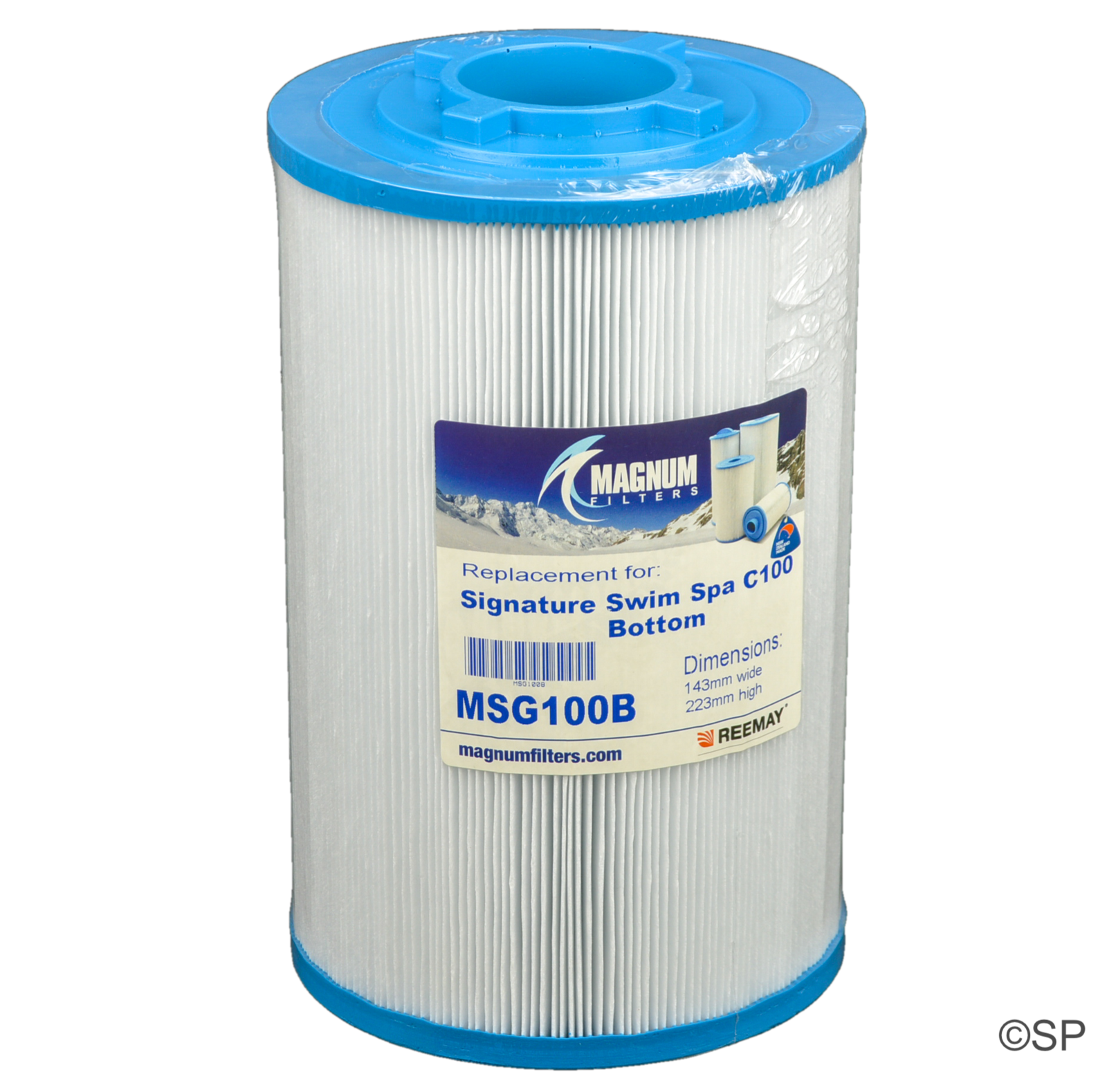

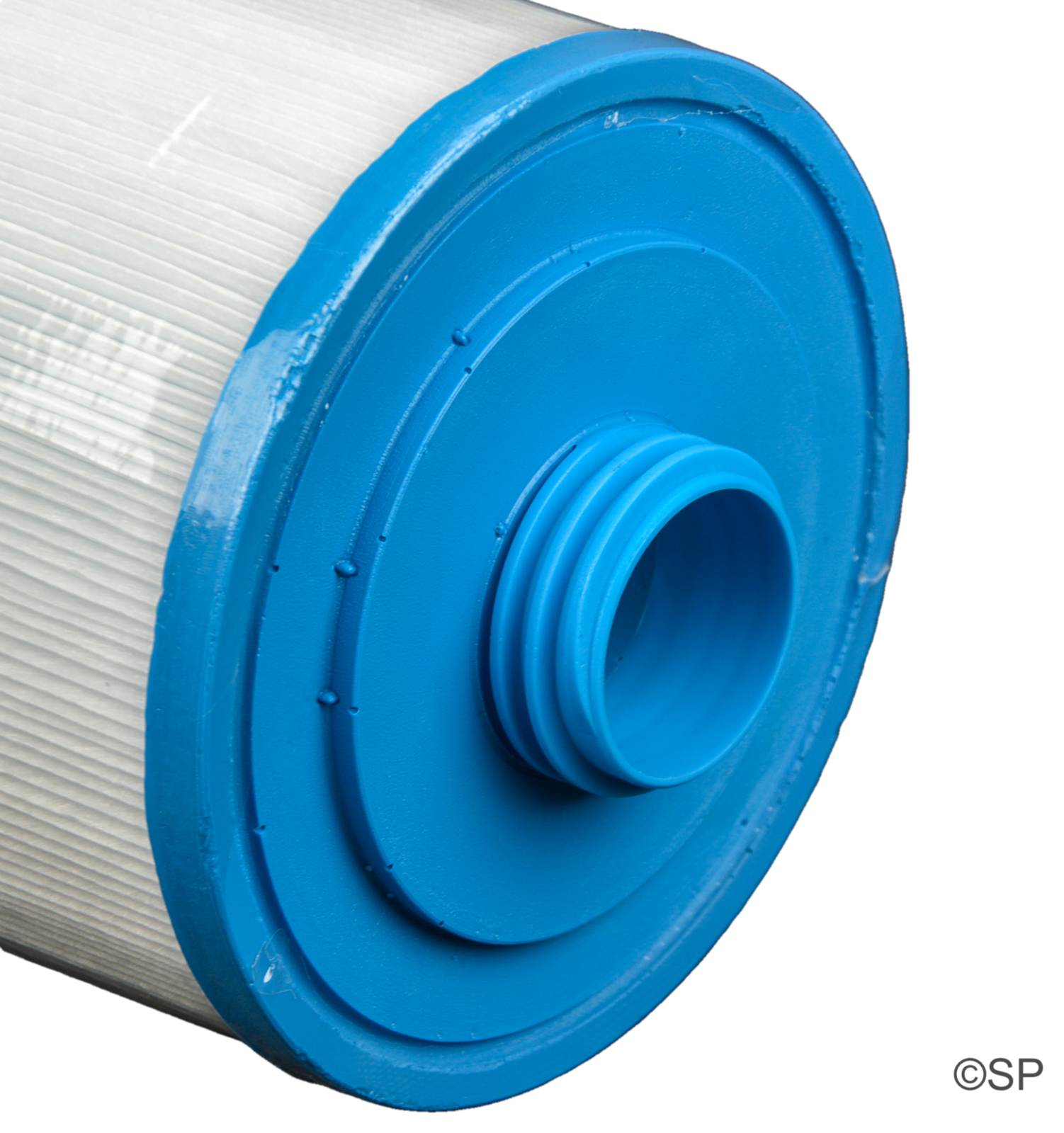

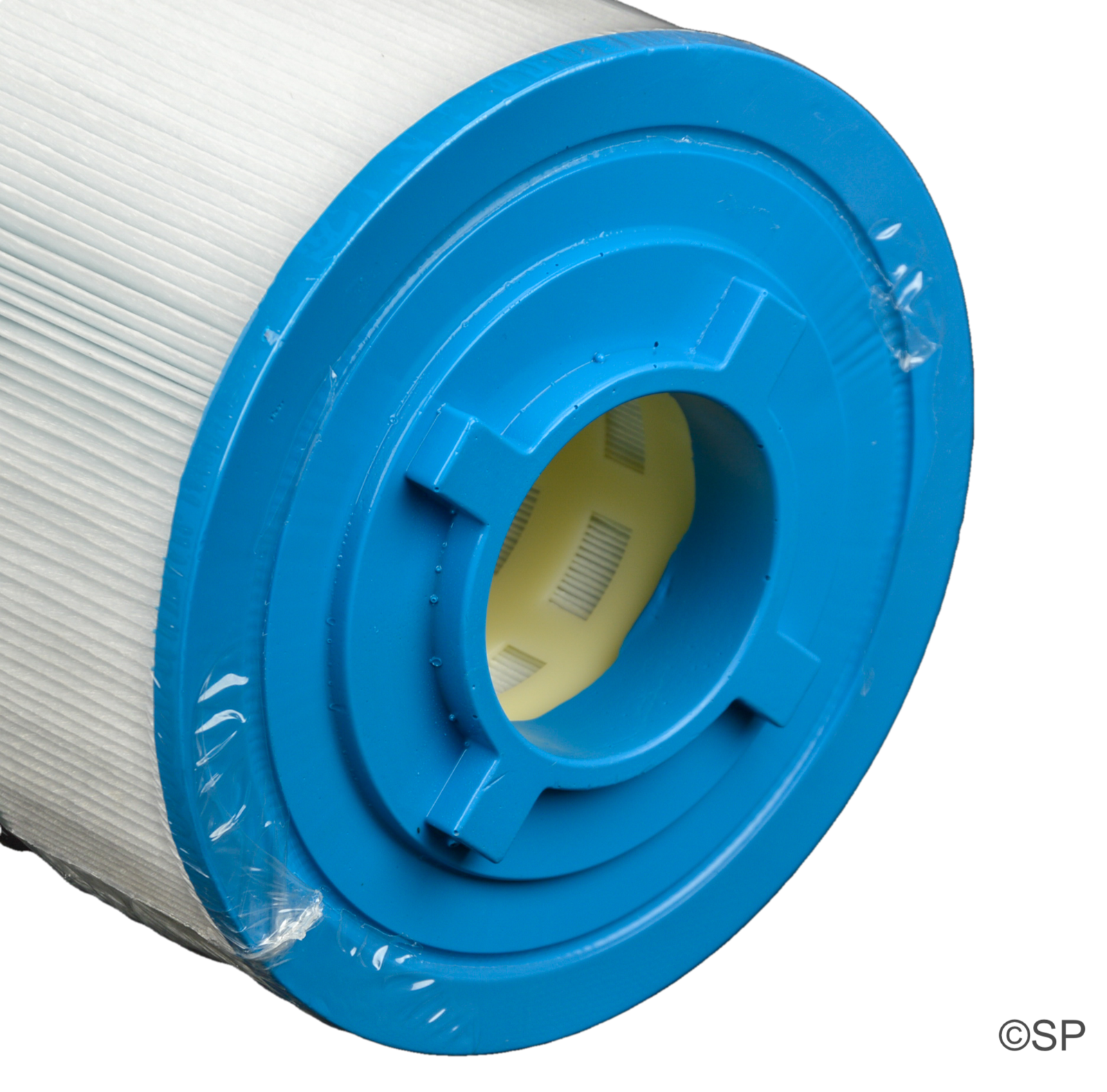

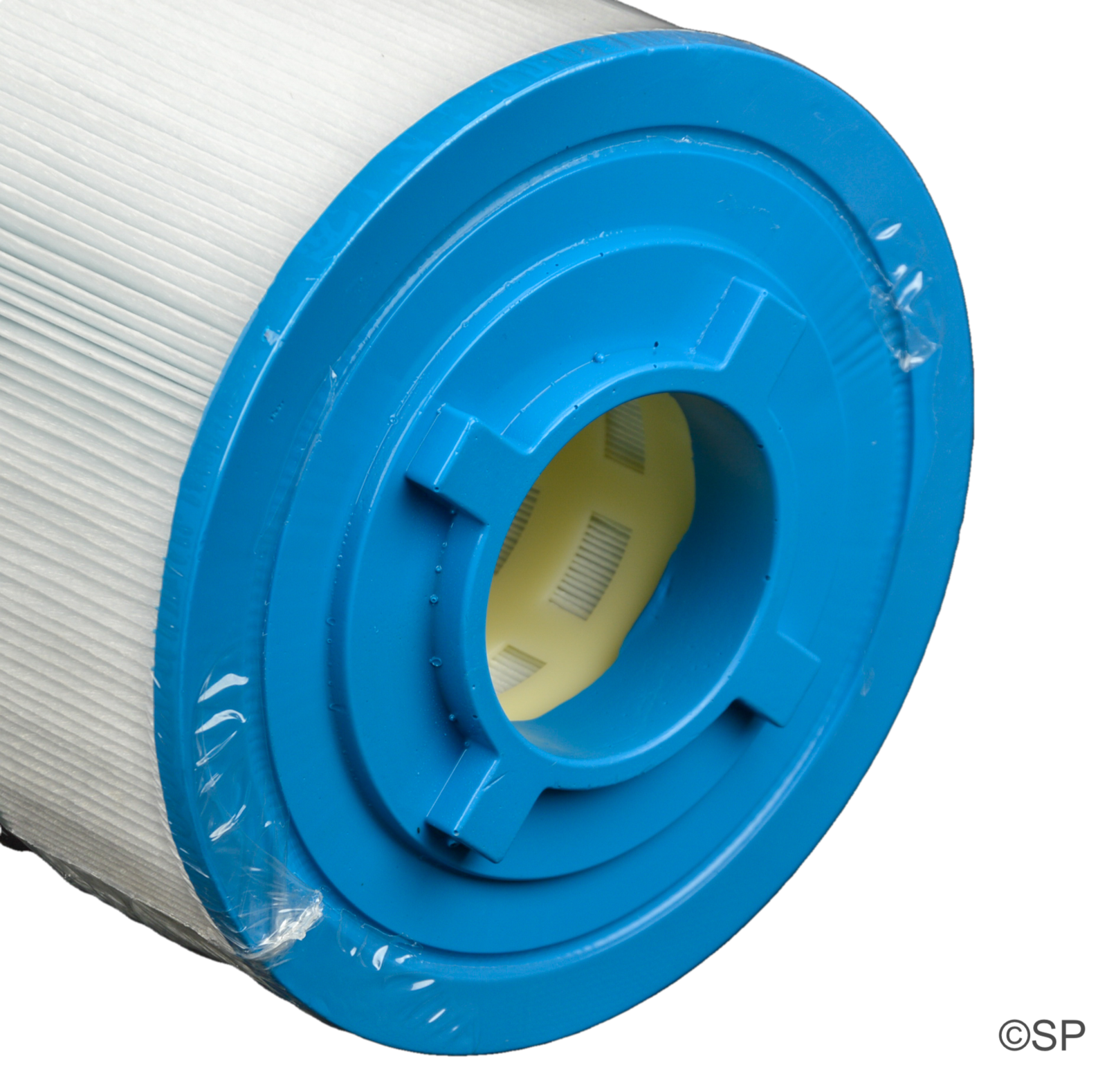

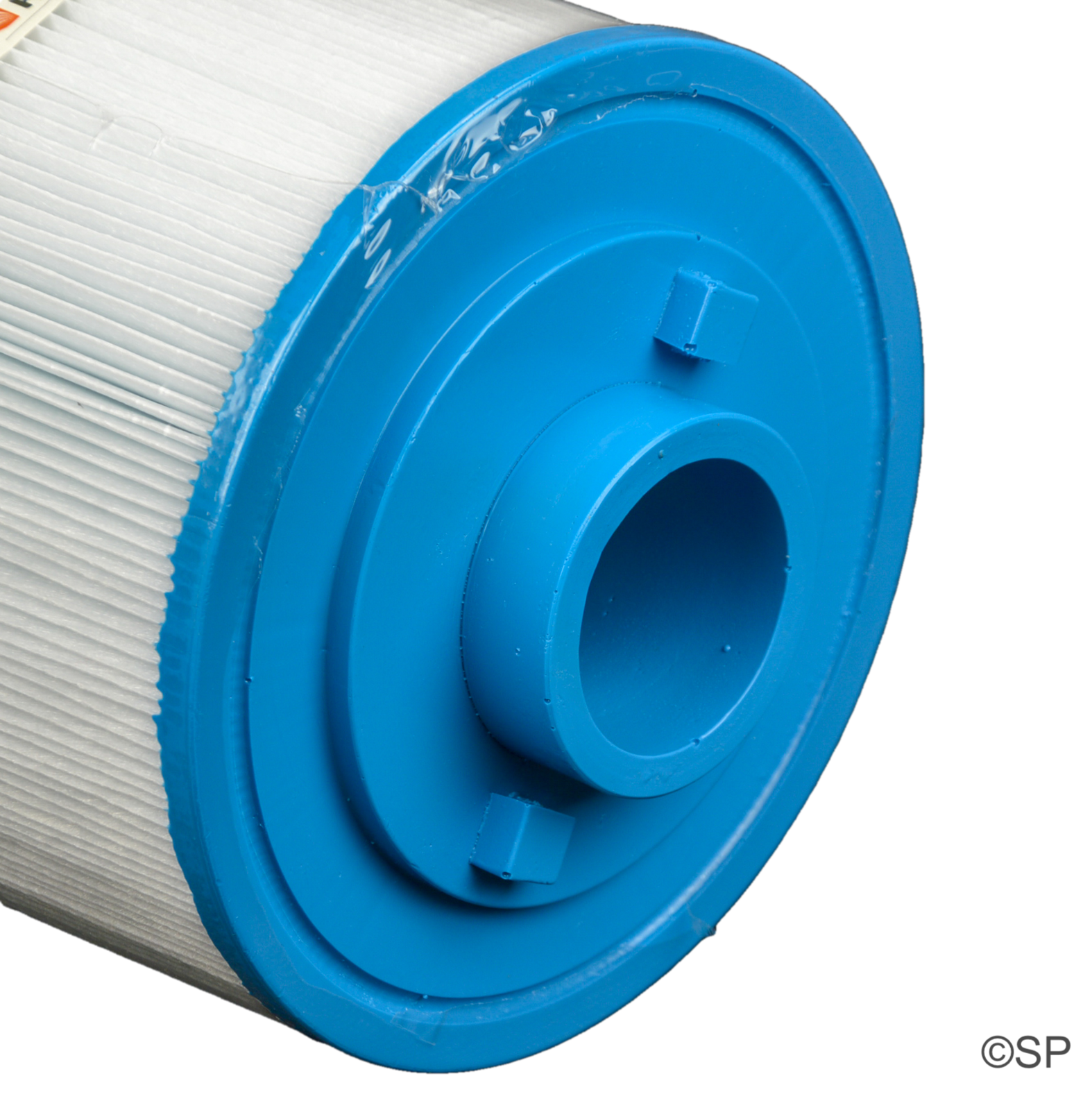

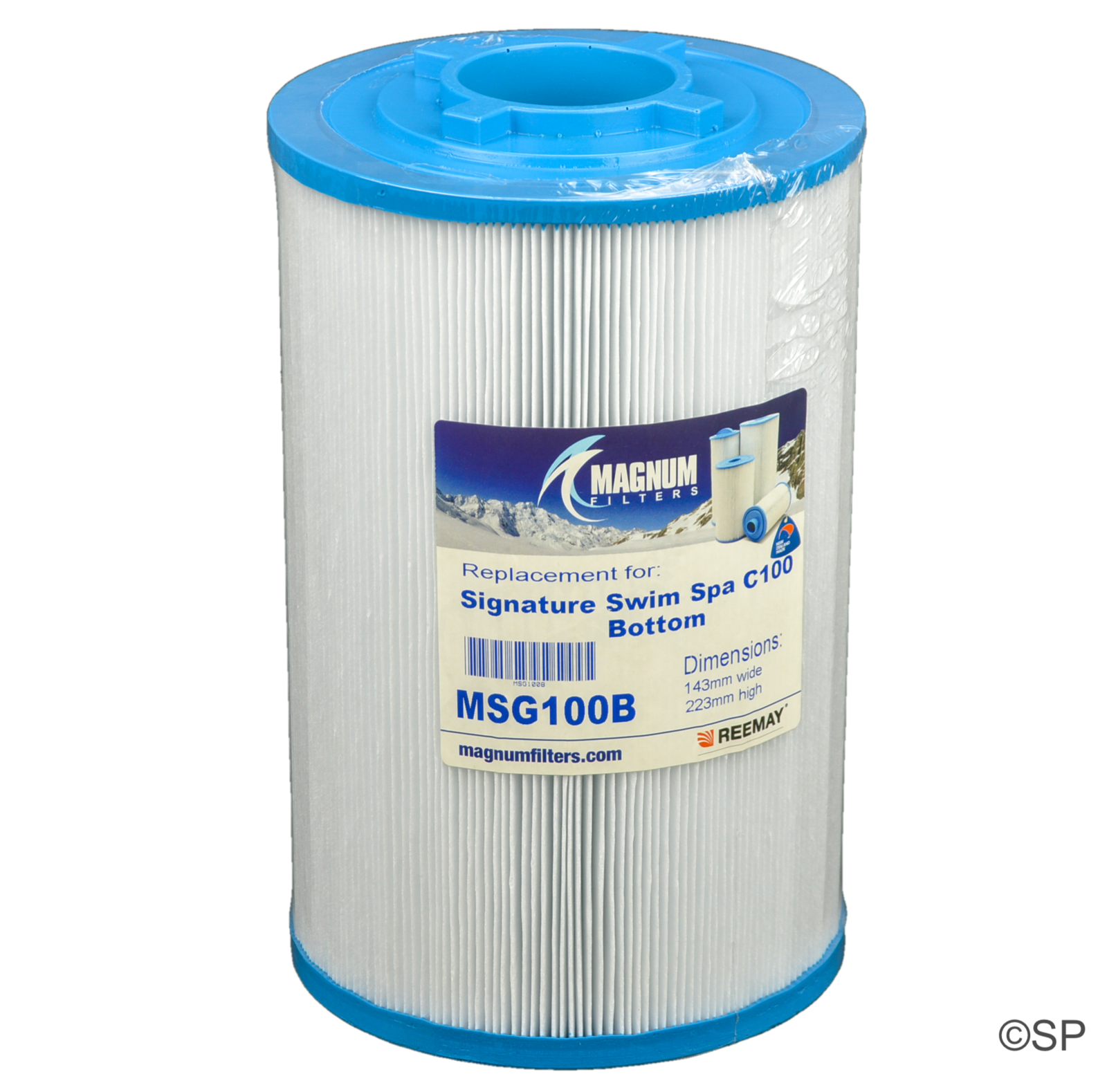

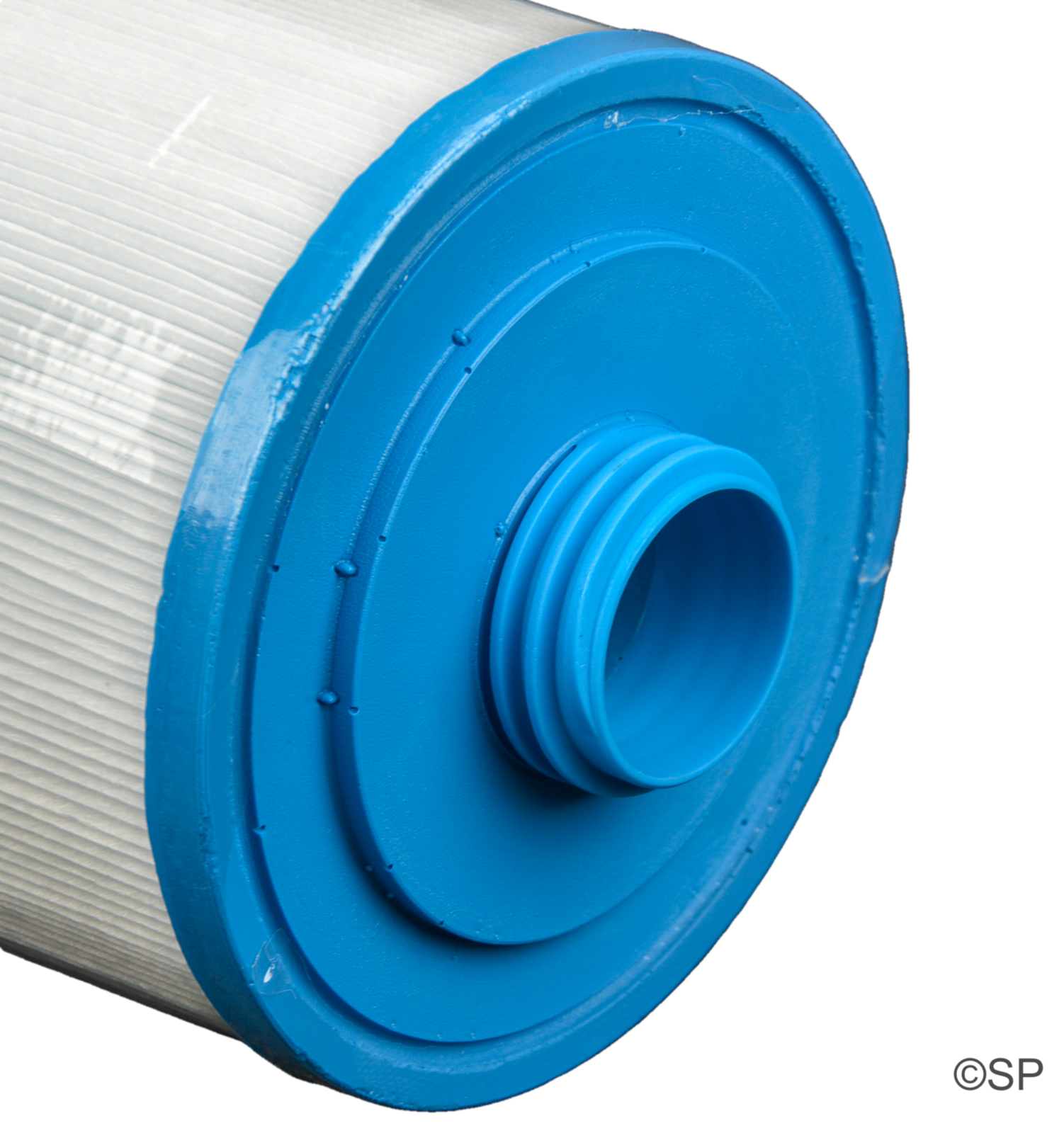

Bottom - open top with lugs to accomodate slip fit top cartridge, Acme (course) threaded bottom. 225mm L x 145mm diameter x open hole top, x 49mm OD threaded bottom.

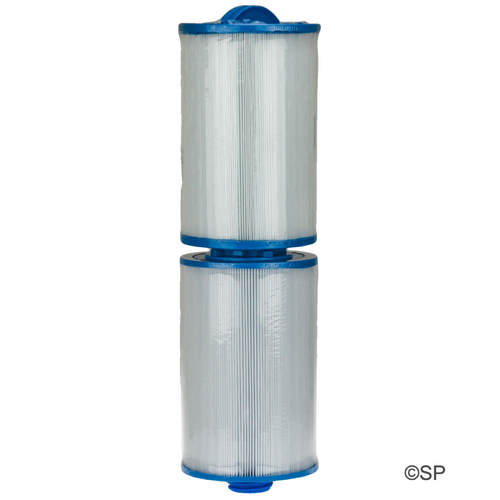

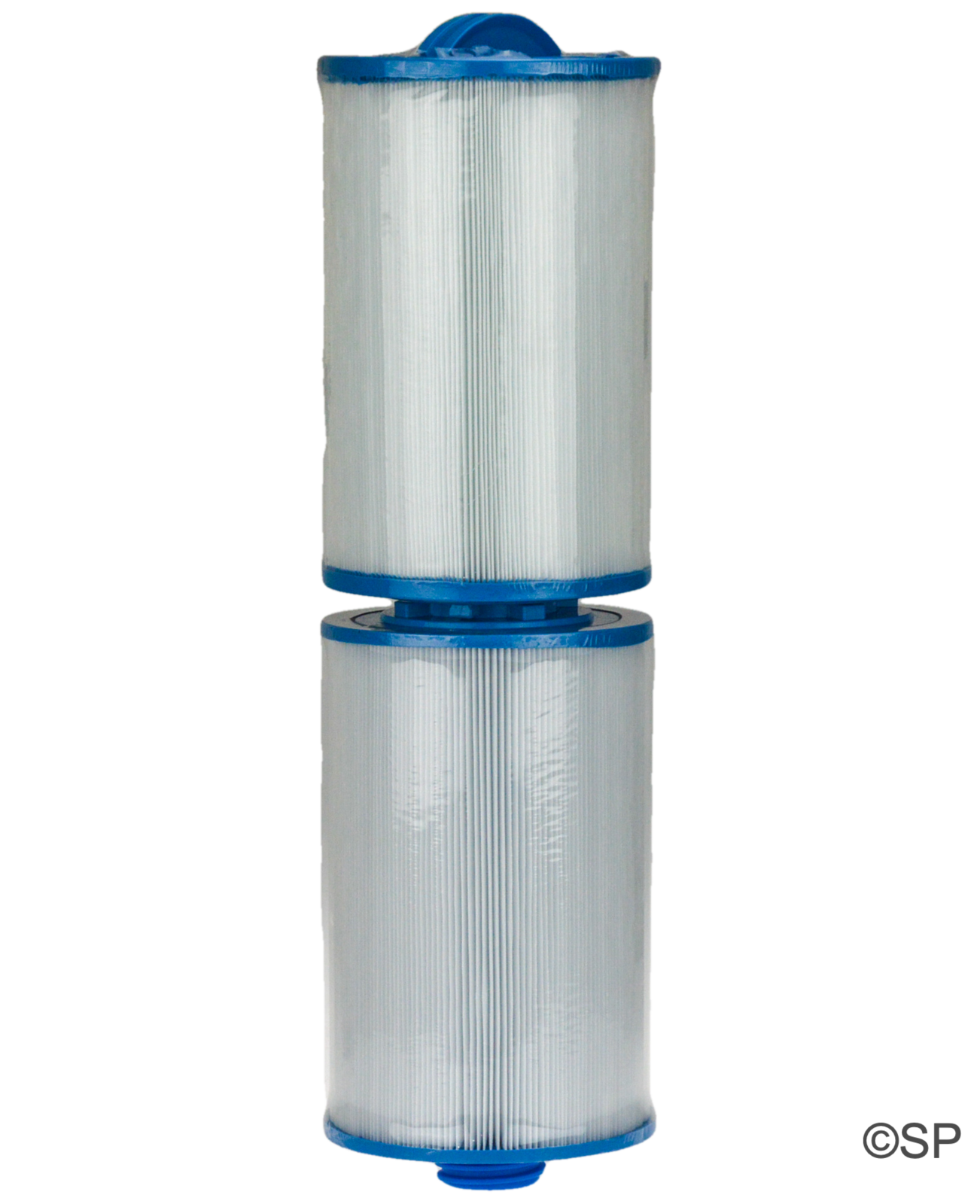

When both top and bottom filters are assembled together the combined overall length (top and bottom) is 460mm high excluding D handle and threaded spigot.

One pair required for 100sqft filter, and two pairs required for 200 sqft filter

Sold as a pair

NB this filter set is very similar to mLR100-k - which have an overall assembled length of 425mm and also similar to LR90-k which are 380mm overall height - the correct set must be purchased.
