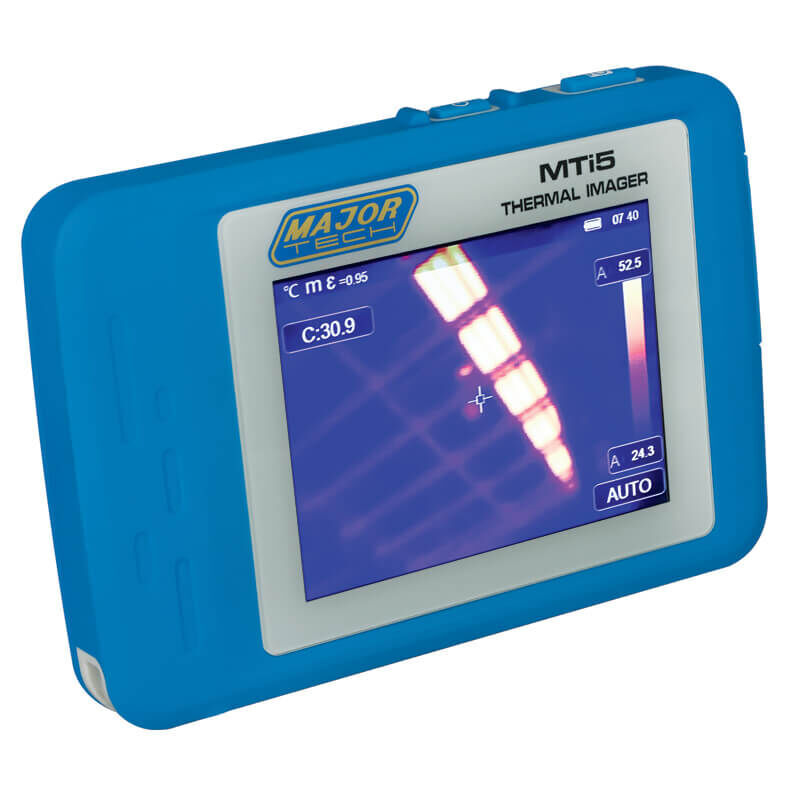

Major Tech MTi5 256 x 192 Pixel Touchscreen Thermal Imager for Spa Service Technicians

Major Tech MTi5 256 x 192  pixel touchscreen thermal imager for spa service technicians

Thermal imagers can be used by spa technicians to easily locate electrical equipment hot spots such as dry motor bearings, poor electrical terminations, and potentially locate water leaks*

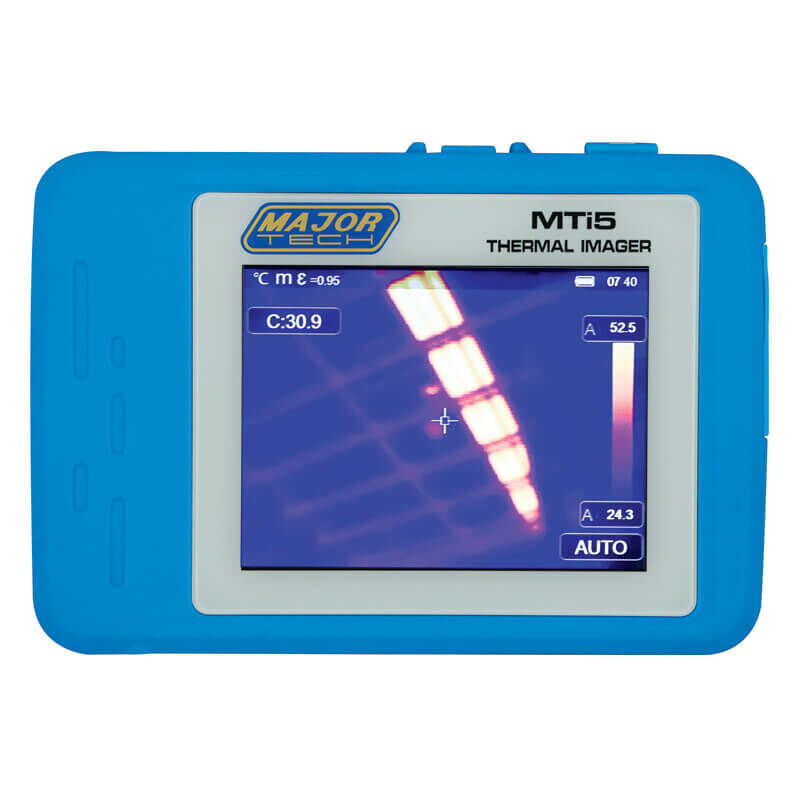

3.5" LCD, 640 x 480 pixels (touch screen)
IR resolution 160 x 120 pixels

Modes:
IR image
Visual image
Picture in picture
Auto Fusion
-20c to 150c temperature and 0c to 550c ranges

Transmit data via bluetooth to smart phone Major Tech Thermal-X App.

• Real-time streaming of videos and images via Wi-FI 802.11
• Free Thermal-X App download available on Android and iOS
• Field of View (FOV)/Minimum Focus Distance of 62°x 46.5°/0.5m
• Thermal Sensitivity of <0.04°C at 30°C (86°F)/40mK
• Object Temperature Range from -20 to 150°C (-4 to 302°F) or 0 to 550°C (32 to 1022°F)
• Measurement Correction options including Emissivity, Reflected temperature,
• Ambient temperature, Atmospheric humidity, Infrared compensation, and Distance compensation.
• Versatile Imaging Modes including IR Mode, Visual Mode, Picture in picture, and Auto fusion(IR and Visual)

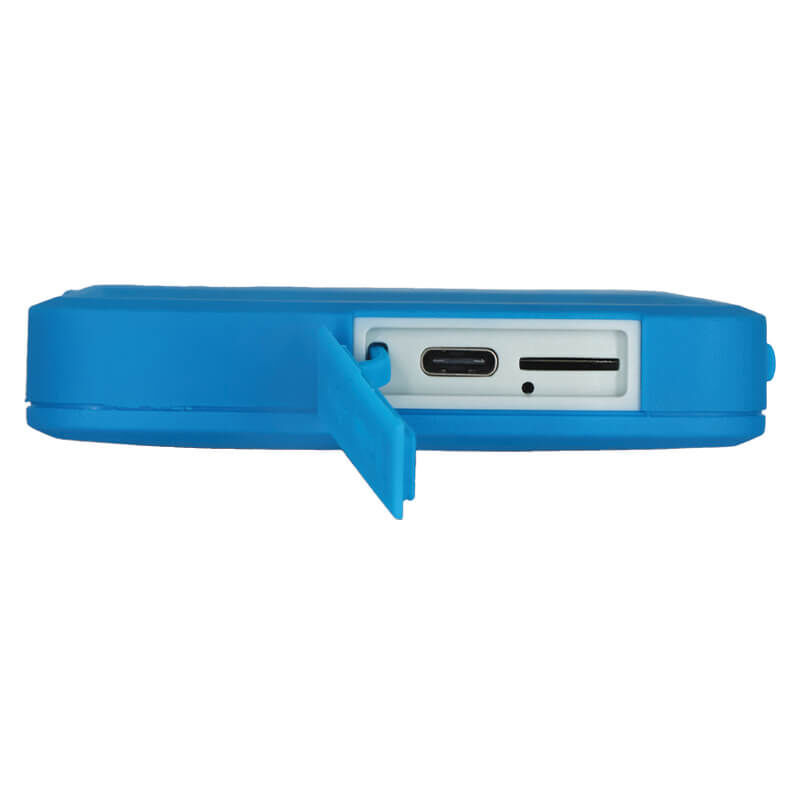

• Storage Media options include 32GB Micro SD card and 3.4GB internal EMMC MPEG-4 encoded Video Storage, allowing up to 60 minutes of 640×480 video at 30fps
• Video/Image Storage modes include IR, Visual or simultaneous storage of both IR and Visual
• Measurement Accuracy of ±2°C (3.6°F) or ±2% of reading
• Drop tested up to 2m, Bump tested up to 25G and Vibration tested up to 2G
• Up to 4 hours of uninterrupted operation with the rechargeable Li-Ion battery

This meter is NOT IP rated - it cannot get wet

Additional features include:

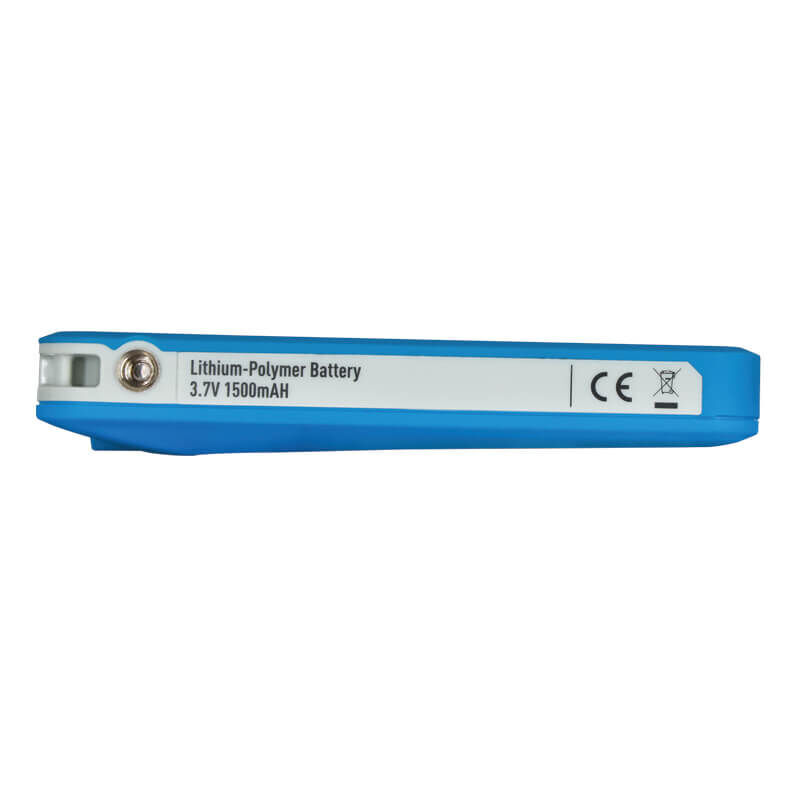

Built in rechargeable Lithium Ion battery - 4hr operating time
Wifi connectivity (Apple IOS note - with Apple devices, the App requires 'Mobile Data' turned off and 'Location Services' turned on).


Includes:

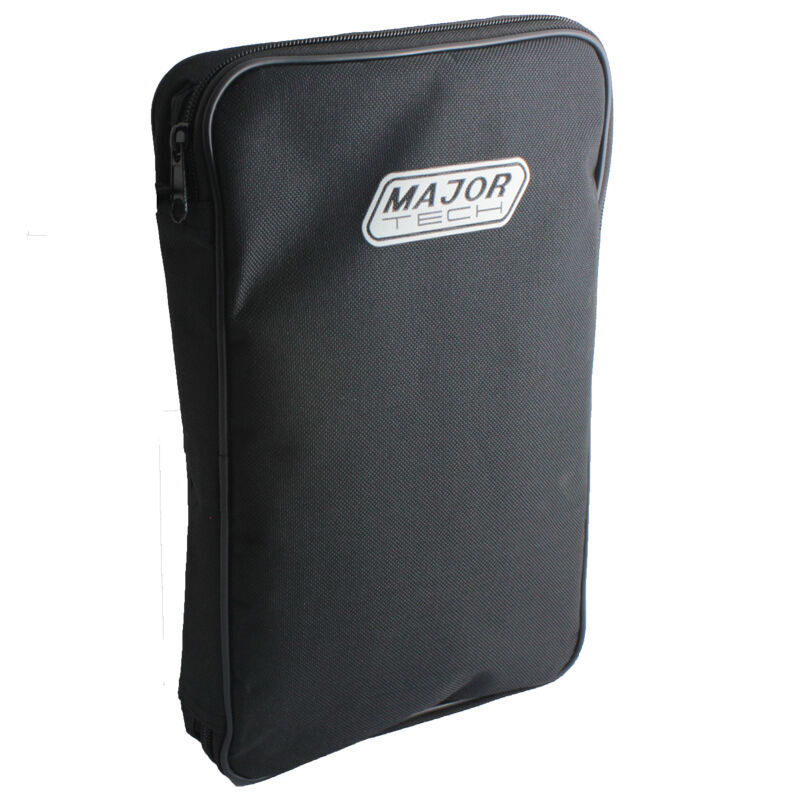

Soft carry case, USB charger/transfer cord, 32GB SD card

Ensure your safety when working in and around spas.

Warning - to be used by competent persons only.
Never solely rely on test devices and ensure you have adequate knowledge on the testing and use of this tool.

2 year warranty

* Leak location finding with this thermal imager is possible when the spa water temperature is significantly different to air temperature under the spa. Water leaking through a joint at the spa shell or pipe connection should be at a lower temp than the body of water, but higher than air temp allowing the thermal imager to pinpoint to source of a leak saving time digging through foam visually looking for the leak.
