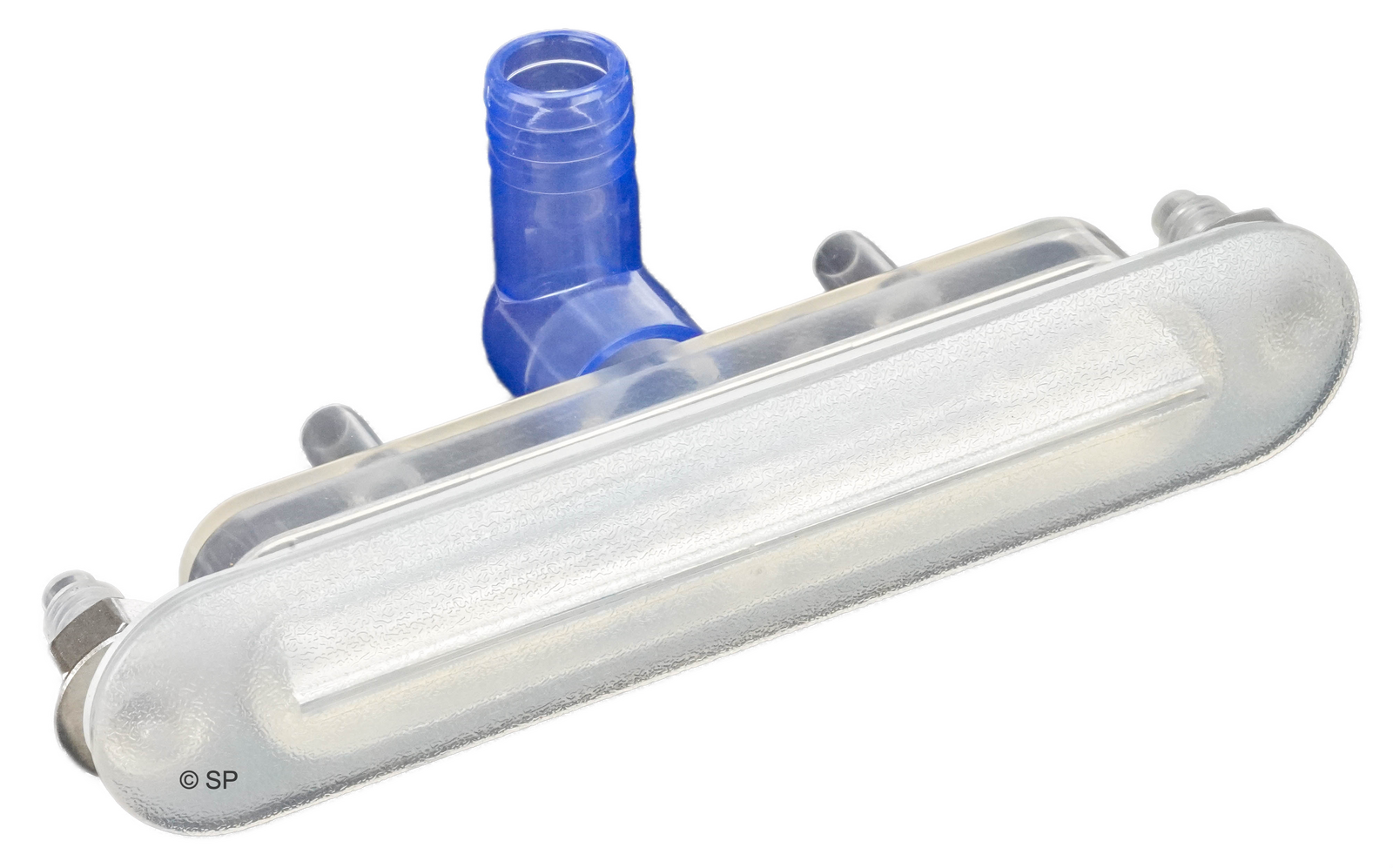

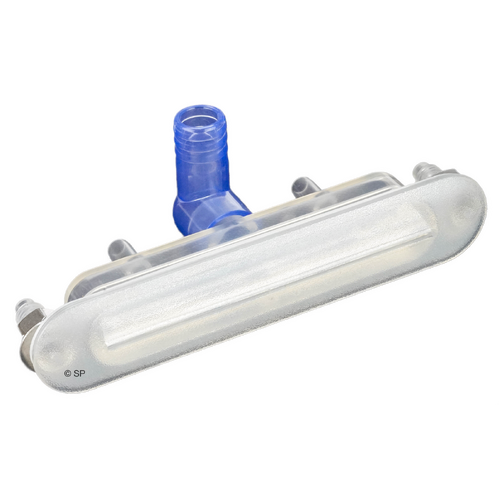

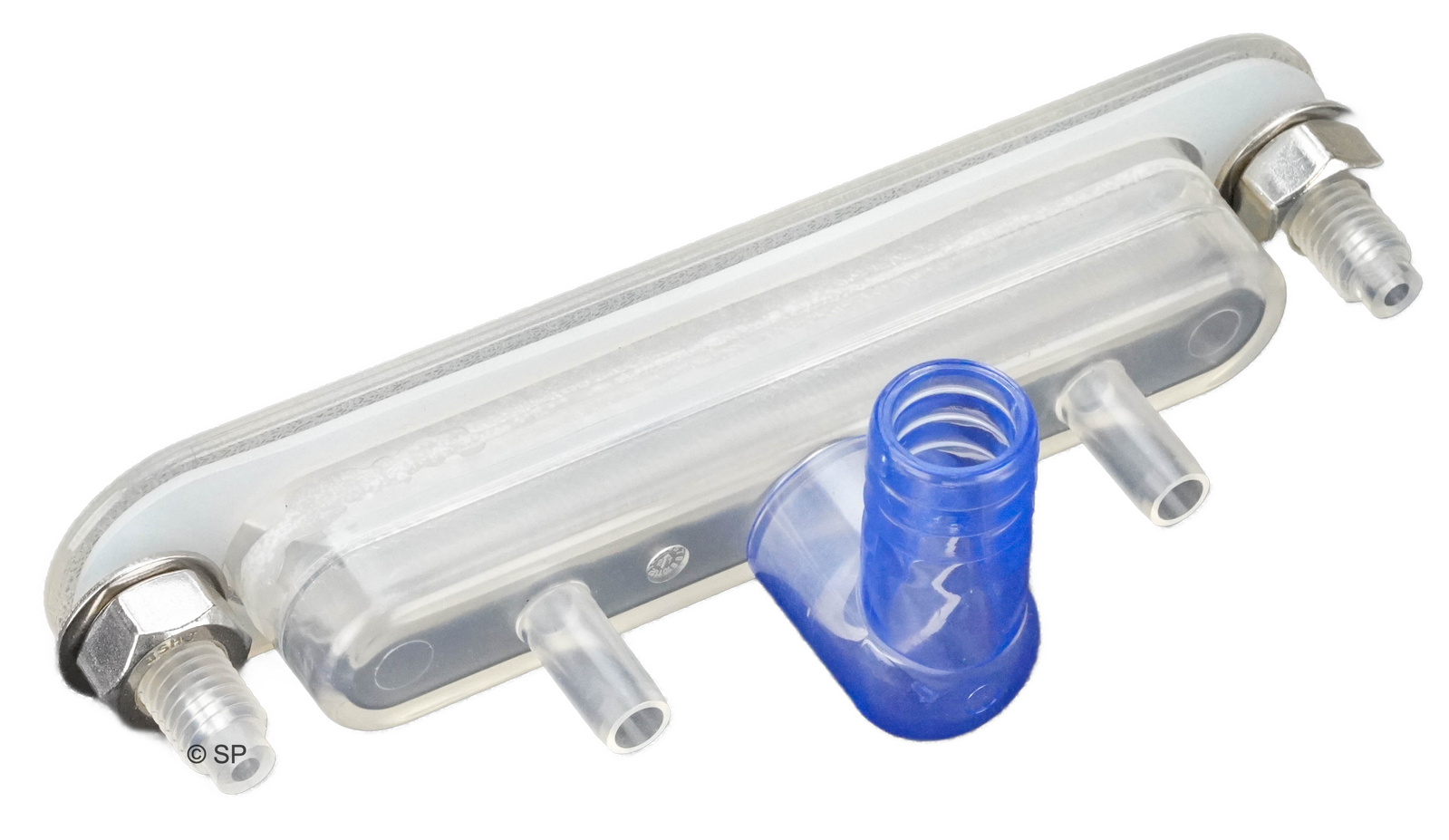

LVJ 8.5" Waterfall - Clear

Clear body for LED illumination

190mm long x 40mm high
136mm long slot

145mm x 25mm slot required in spa shell for installation, plus 2 x 12mm diameter holes for fixings.

170mm overall distance from centre to centre of each fixing thread.
2 x 12mm threaded fixings with nuts.
3/4" barb elbow connection
2 x LED lamp pockets

Do NOT over tighten the fixing nuts or the threaded fixing posts can easily snap.
