Hydroquip / Pentair Maax Spa, Southwest Spa & Sierra Spa HT-2 Oval (to replace crescent) Touchpad

$517.00
In Stock

19 In Stock

SKU:
hq0201-100719880-0521a
Shipping:
Calculated at checkout


Product Description

SPECIAL PRICE

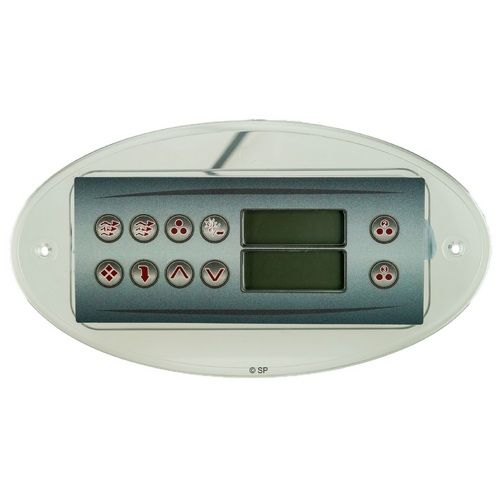

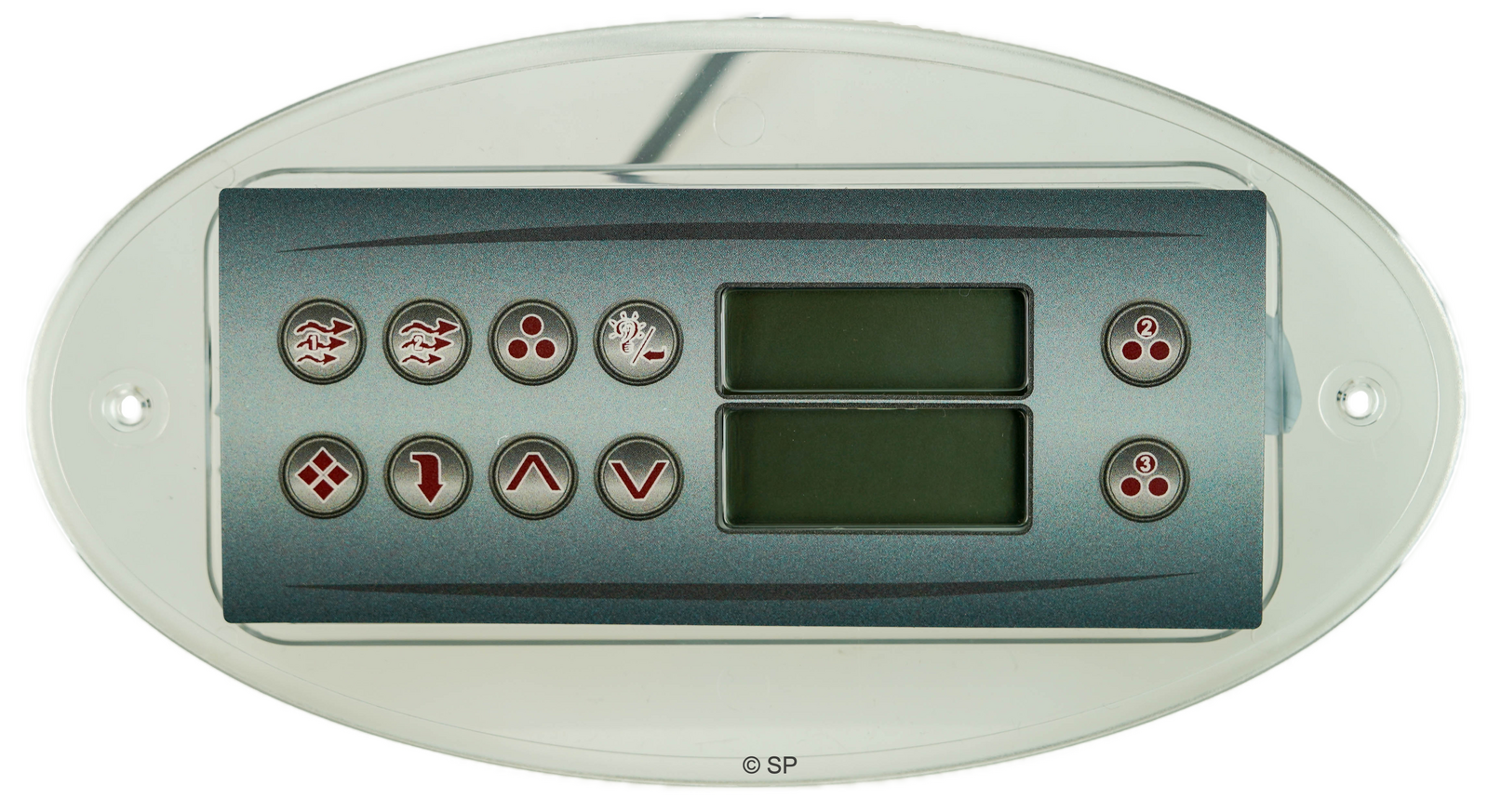

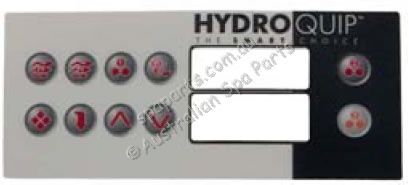

Hydroquip HT-2 10 button split screen touchpad - originally crescent shaped - now offered as Oval shaped - used on Australian Maax Spas, USA made Sierra and Southwest Spas - supplied with standard rectangular overlay decal ONLY -
we do not have original crescent shaped decals or placards available.
Note that the oval placard is clear so the spa acrylic below shows through.

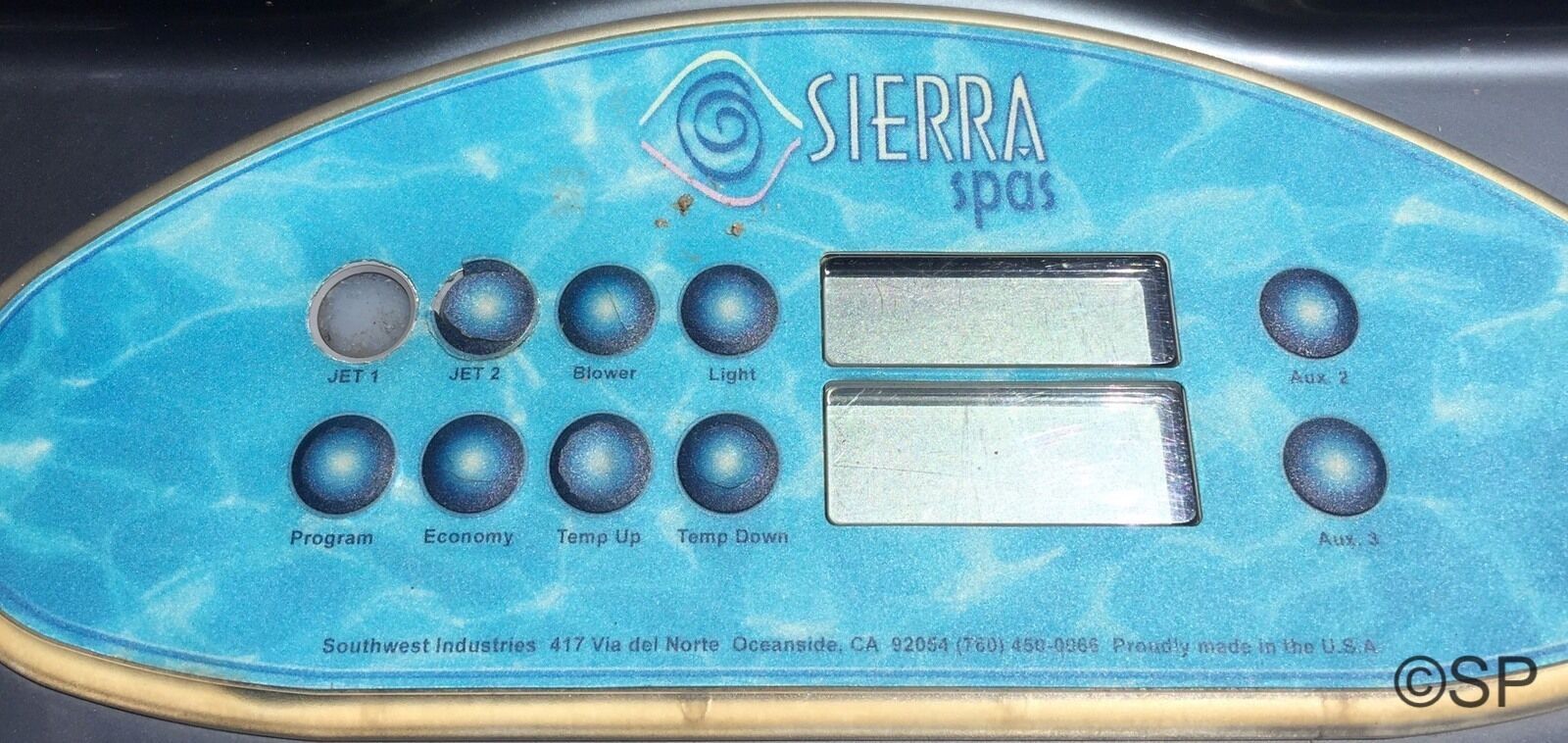

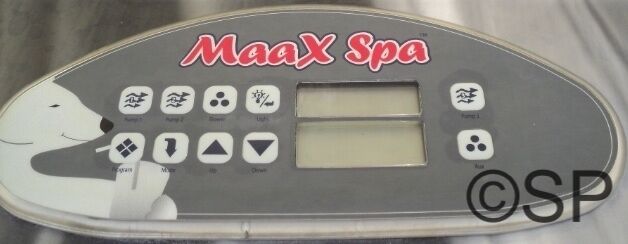

Note that most images show the unavailable original crescent shape that this touchpad can replace.

Suitable also to retrofit the standard rectangular HT-2 touchpad for an economical option if space permits to accomodate the wider/deeper oval shaped placard.
The hole cut out below the oval/crescent shaped version is slightly larger than the hole for the rectangular version although the rectangular one will generally cover a touchpad hole from these cresent shaped touchpads.
K-5, 0201-1007198 touchpad.
Dimensions - 232mm wide x 123mm deep (including oval shaped placard).
Hole required - 172mm wide x 75mm deep.
A smear of silicon is recommended to seal the touchpad to the placard to eliminate water seeping below.

Explaining the 2 alternatives - either this special touchpad with no outer lip/bezel, and oval shaped placard with 'ill fitting' rectangular decal.
Main advantage - very economical alternative, with same function & reliability - same 1 year warranty.
Main disadvantage - appearance due to incorrectly shaped decal (perhaps you can come up with an option to 'dress up' the placard such as sticking an image below it, between the clear placard and gasket.)
OR
the rectangular HT-2 10 button touchpad hq 34-0190A that has the outer lip / bezel and correct fitting rectangular decal.
Main advantage - looks smarter and will generally fit the same hole size.
Main disadvantage - may not cover a poorly cut out hole where a crescent shaped touchpad had been used.
