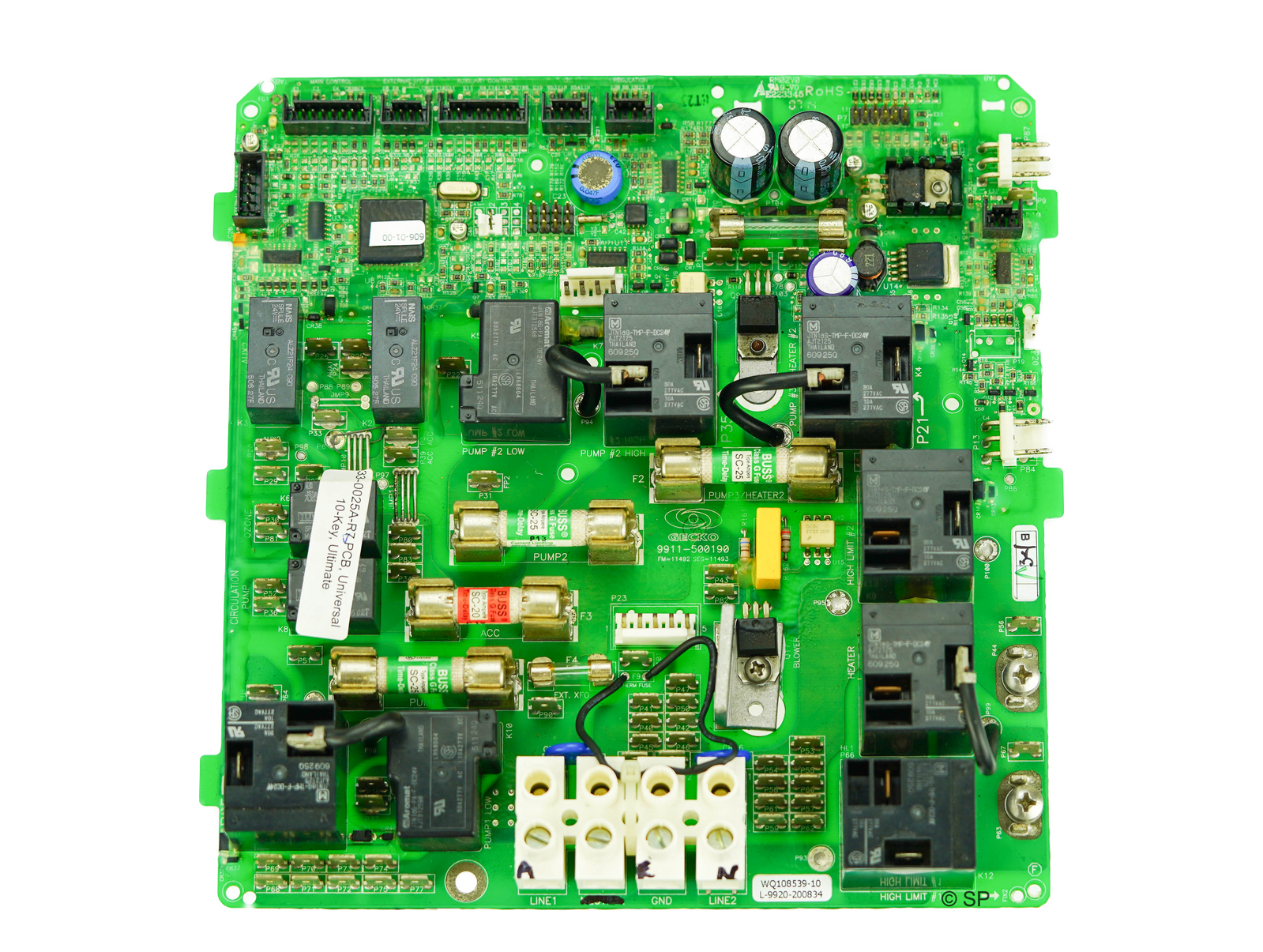

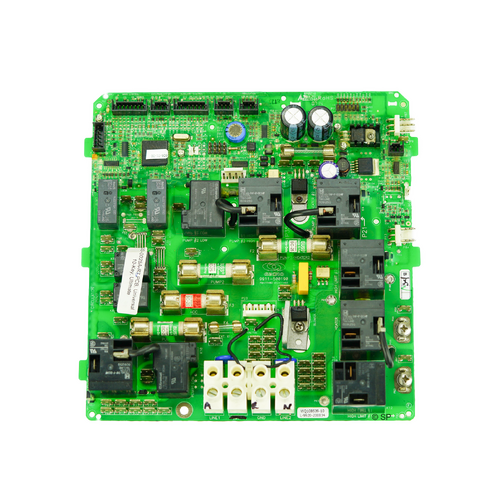

Hydroquip cs9707 series PCB circuit board

Hydroquip / Pentair cs9707 printed circuit board replacement HQ33-0028A or HQ33-0025A

NB the stock we have is the HQ3333-0025A

Controls up to 3 pumps, air blower, light, ozone, optional circ pump, 2 optional auxillary outputs and remote VH plug in heater

Suits Hydroquip HT-2 split screen control panels only - HT-2 8 button (for 2 jet pumps maximum) and HT-2 10 button for up to 3 jet pumps.

Used in Australia on Maax Spas, Southwest Spas, Sierra Spas

Ensure correct electrical reconnection - these boards differ from the HQ33-0028A which was also supplied on systems imported to Australia and have very different power supply connection and relay types.
Incoming power connections vary between board models - these boards connect power to Line 1, Line 2 and GND (Neutral terminal is NOT used)
Boards need to be programmed to suit spa/system setup
It may be necessary to disconnect front panel fault / indicator lamp wiring when changing to this board.

NB These are NOT Gecko MSPA-MP / M-Class replacement circuit boards
