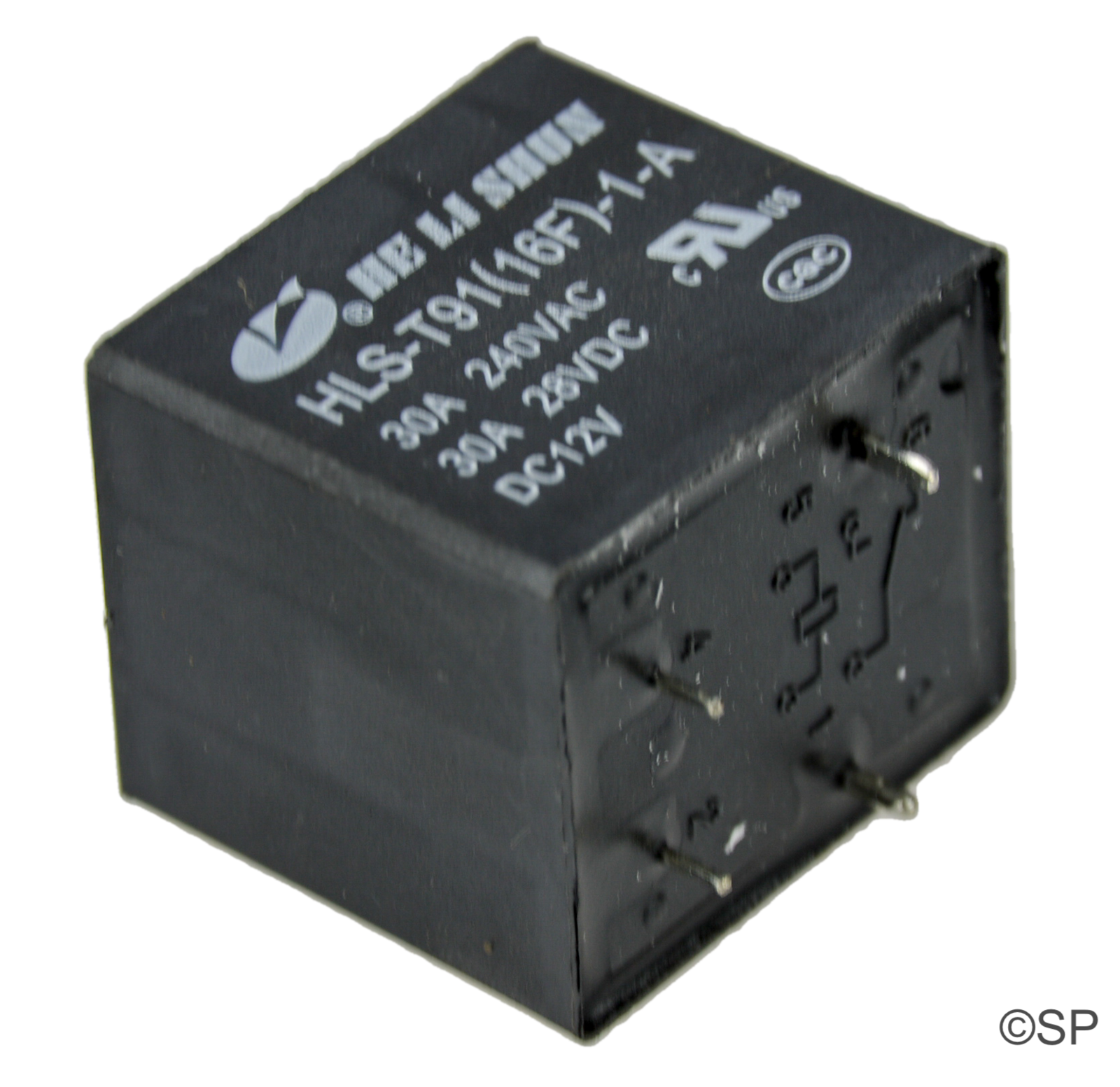

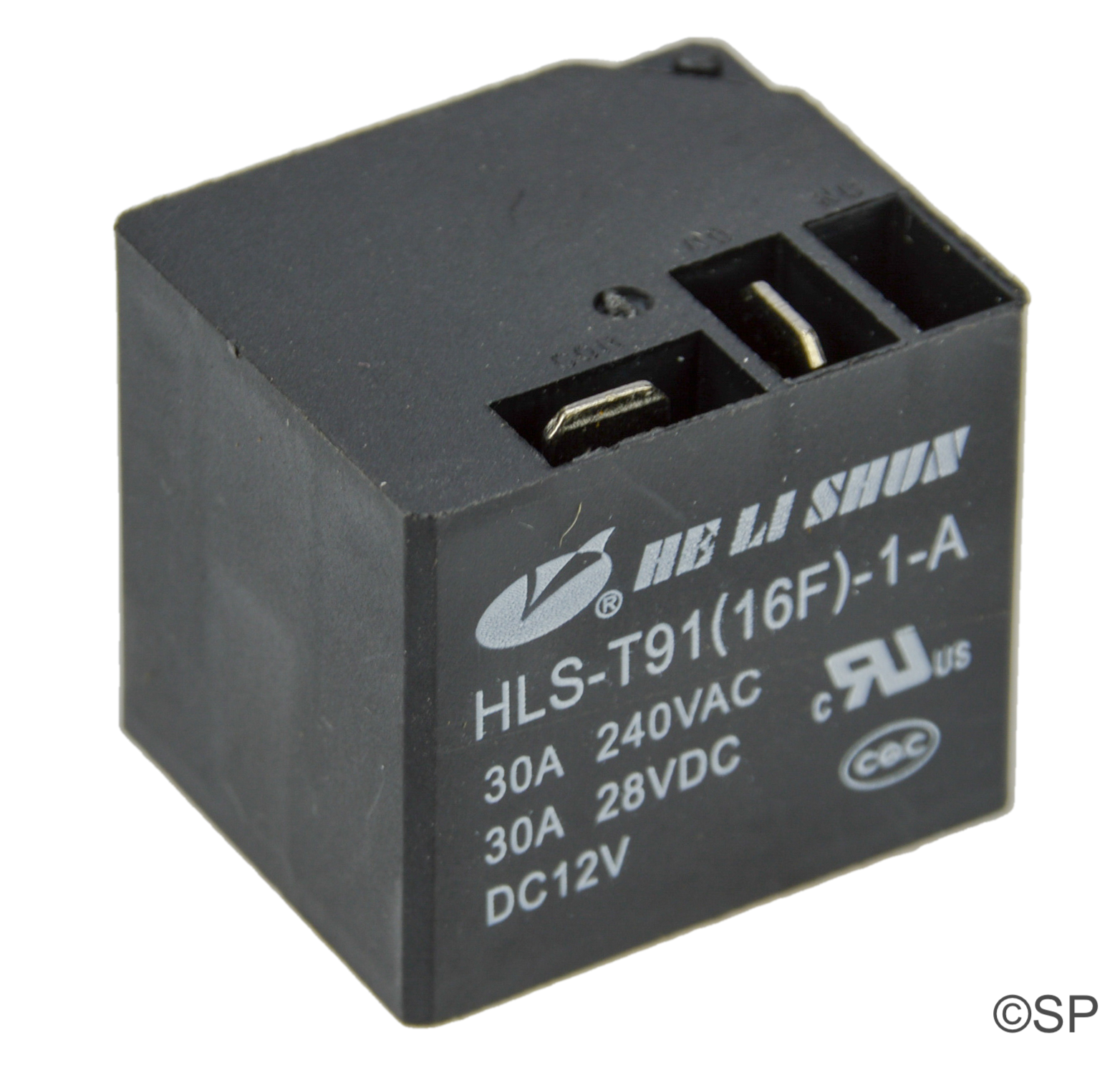

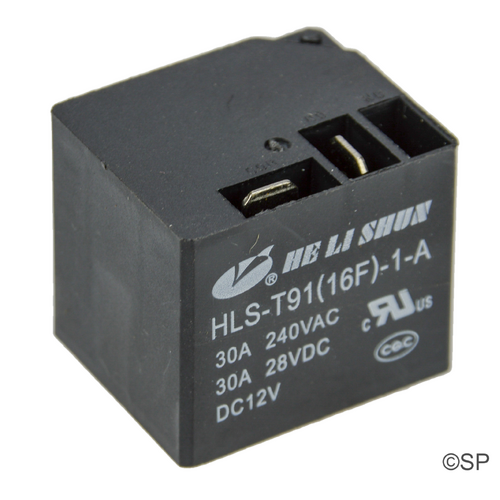

He Li Shun PCB Mounted Relay 30A, 240V, 12V DC Coil

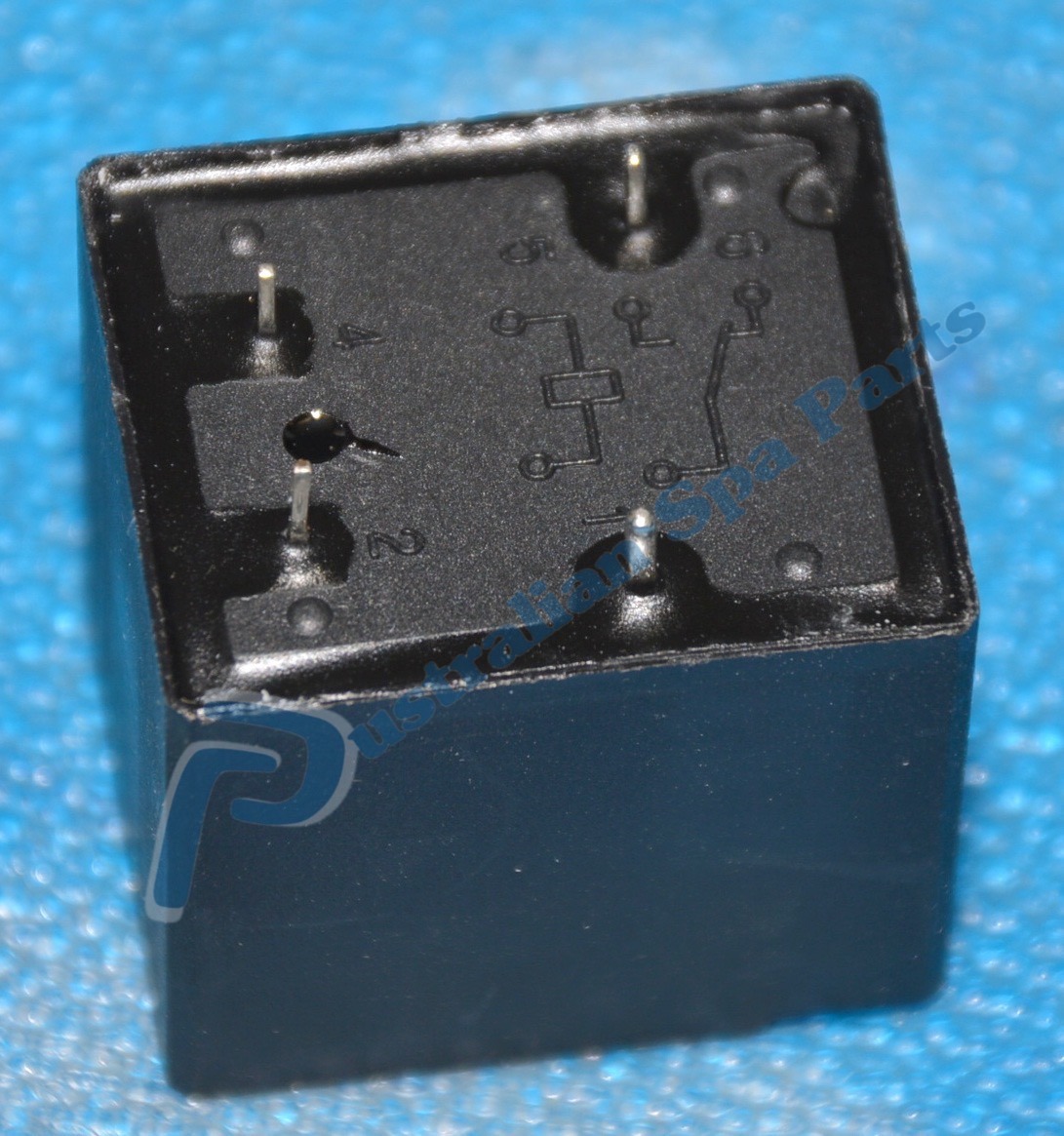

PCB relay for Aeware series spa pack circuit boards. Suits Aeware in.xe, in.ye and in.xm series spa packs. Single Pole, Single Throw 30A rated relay with 12v DC coil. Used on Printed Circuit Boards made by Aeware (Gecko). 32mm L x 27mm W x 28mm H (plus terminals). High curent switched Pins spaced 19mm apart , coil pins - 11mm apart The switched contact pins are spaced further apart and offset compared to the coil pins. The spade terminals on top are utilised on some board positions only. Replaces Panasonic M JTV18F-TMP-12V relay but top spade positions are different.
