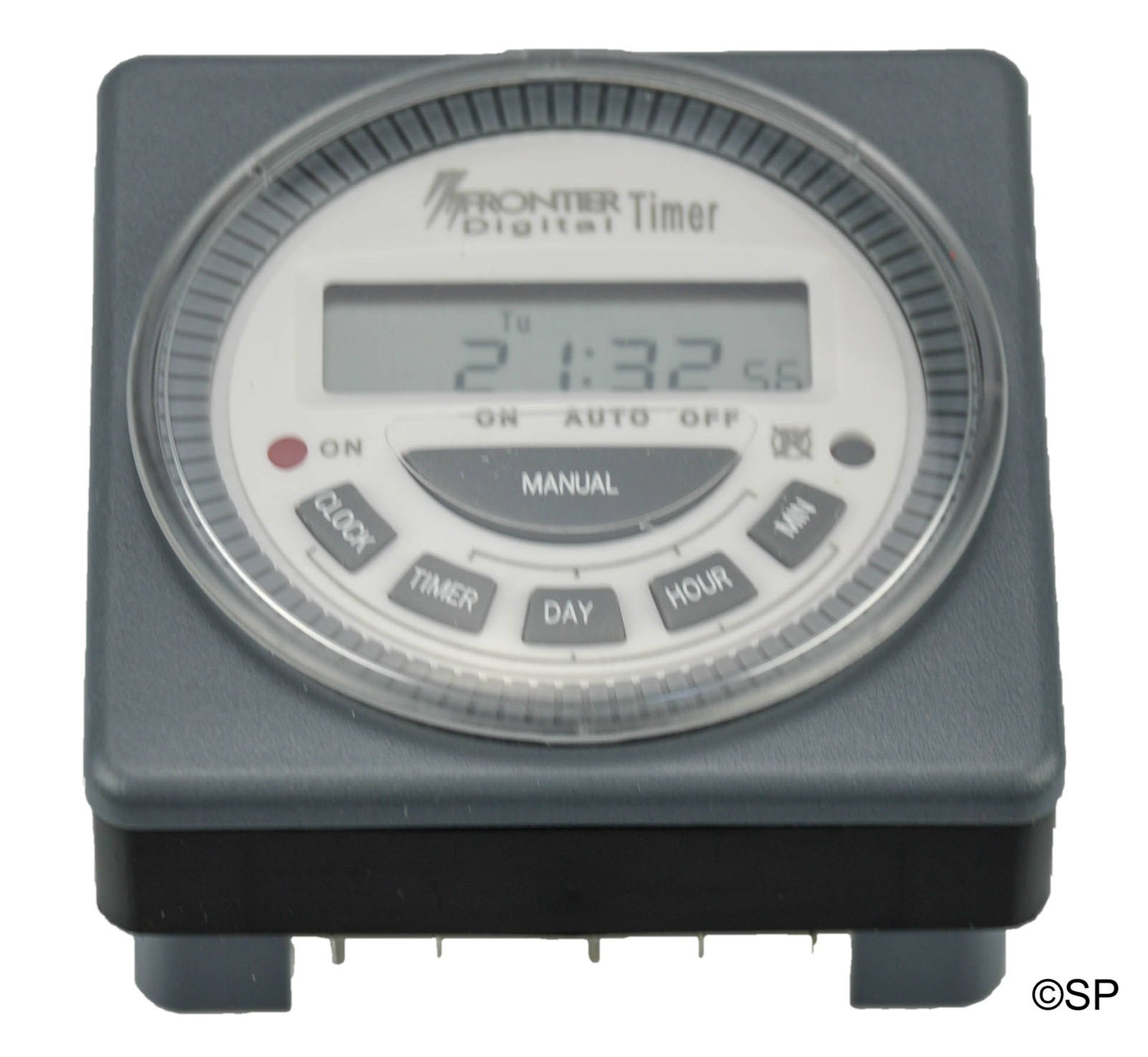

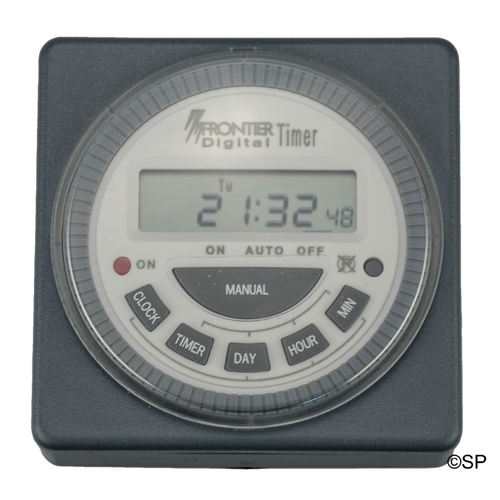

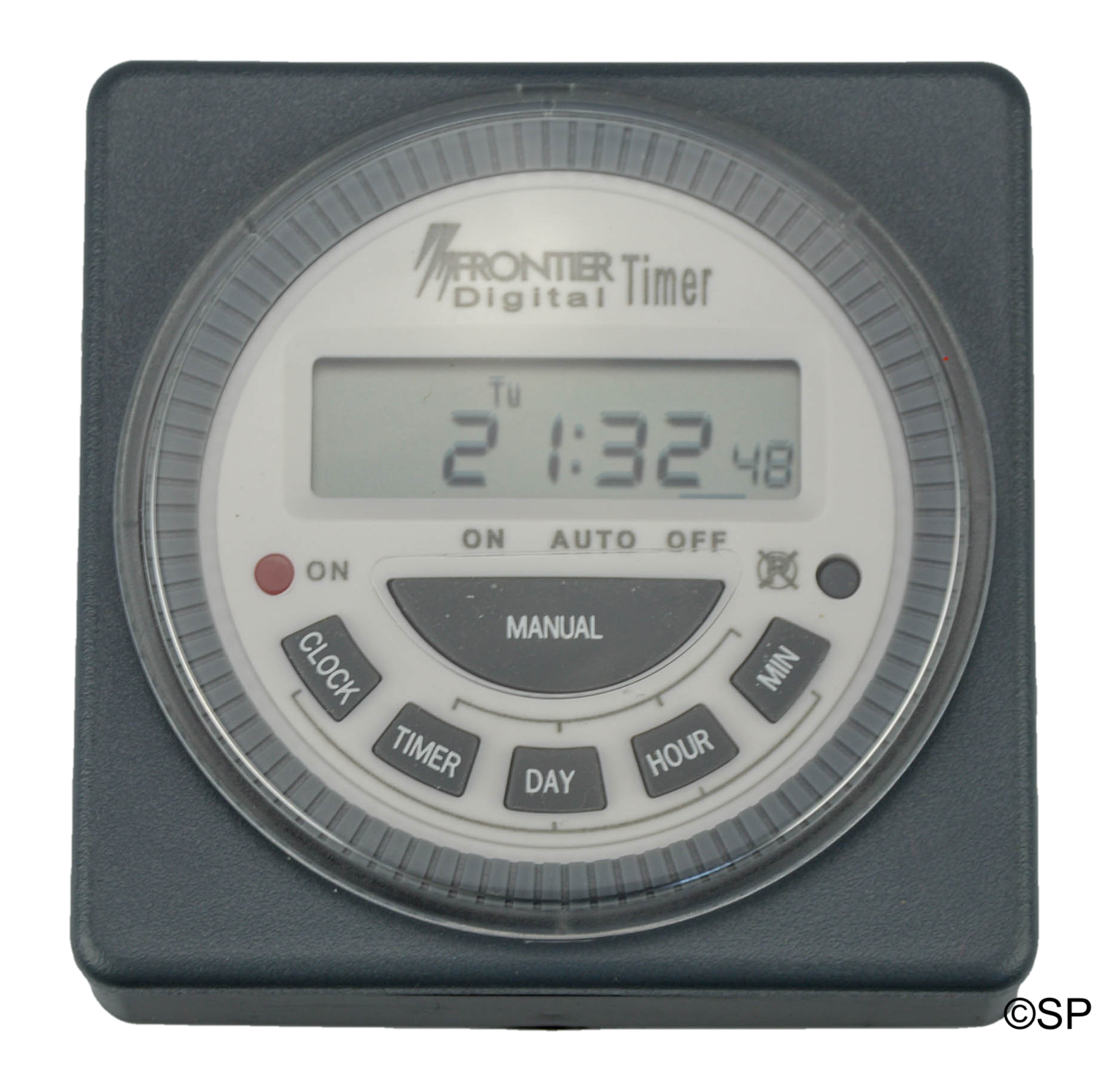

Frontier Flush Panel Mount Timeclock - Digital 7 day - with Battery Back Up

Frontier 7 day digital timeclock.

Up to 8 programmable time periods per day can be set.

Flush mounts into airswitch boxes, chlorinators, heaters, etc
Complete with clip on clear cover
Contacts rated at 250V, 8A

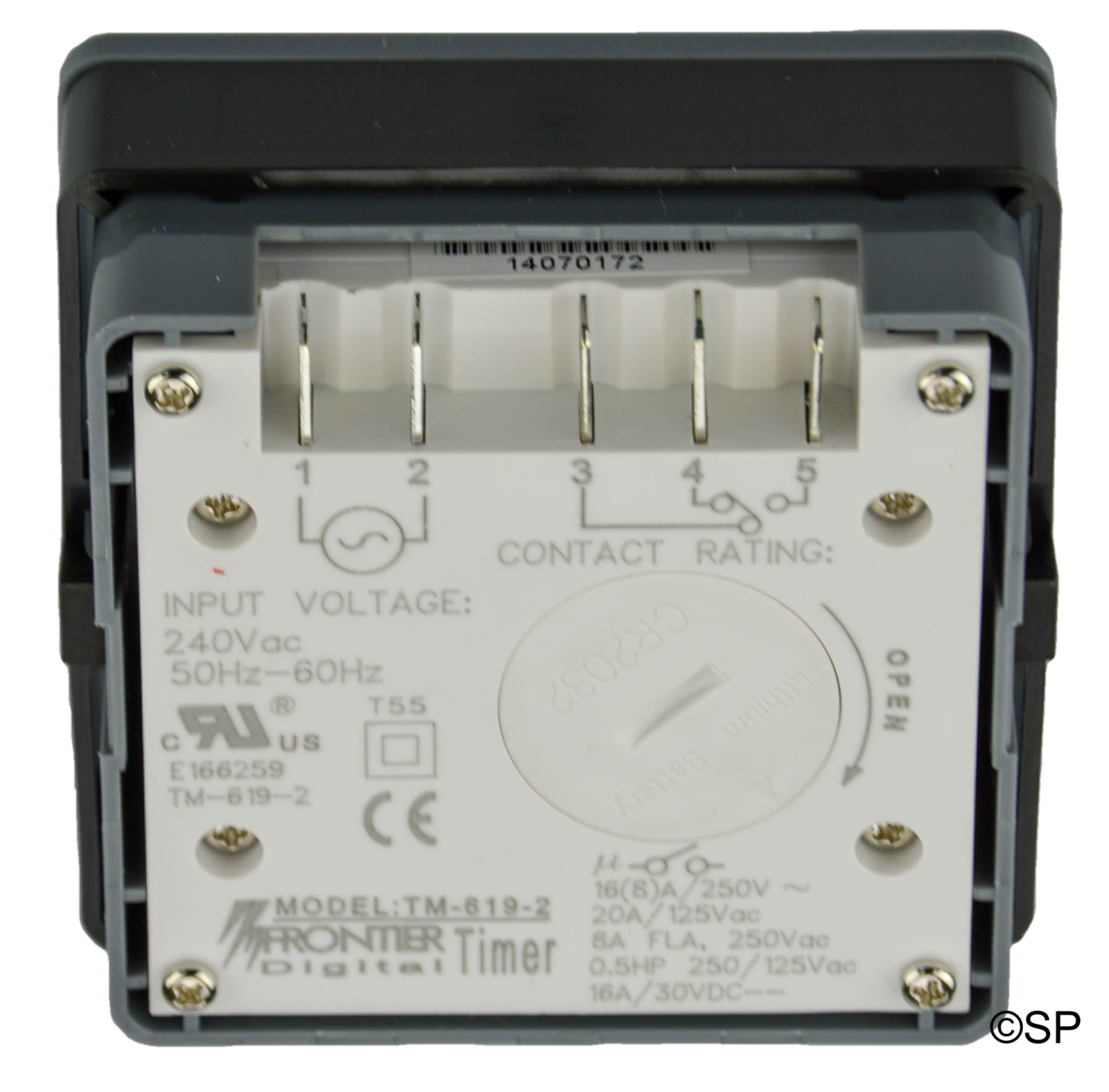

NO/NC contacts - 5 terminals - 6.3mm spade
Relays should be used in conjunction with timeclock where pump rating exceeds 1.5hp
Fitted with internal battery back up - perfect for applications where power interruptions are common or where equipment such as pool chlorinators are connected to reduced tariff electricity supply.

Replaceable back up battery CR2032

8A full continuous resistive load rating,
240v, 50-60Hz
72mm x 72mm.
Requires hole 67mm x 67mm
