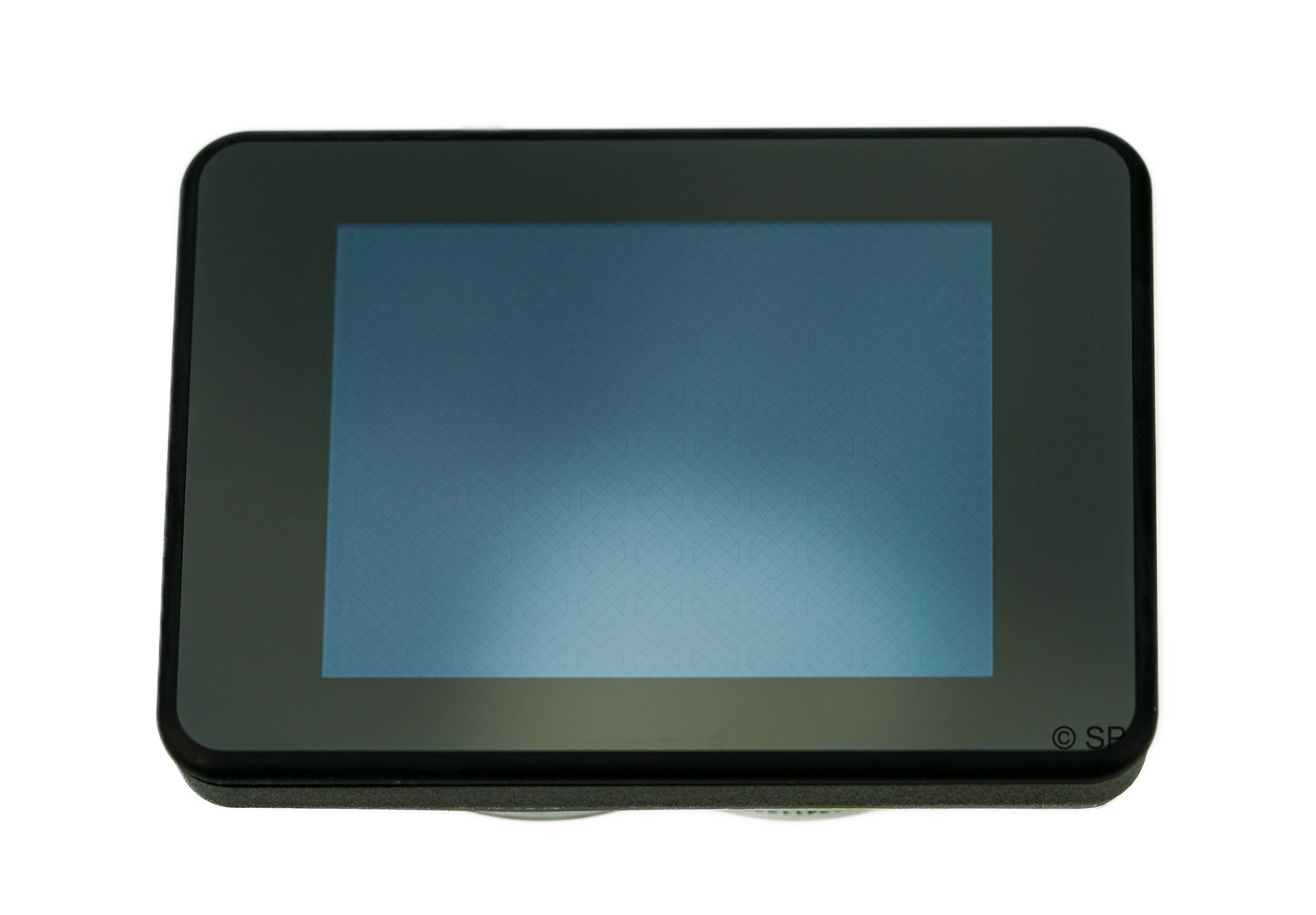

Balboa SpaTouch Mini Touchpad

Balboa SpaTouch Mini spa touchpad - touch screen

Super small compact touchscreen touchpad.
2.9" screen (diagonal) - 58mm x 44mm
For use with Balboa BP series spa packs

85mm x 61mm
Hole size required - 70mm x 48mm

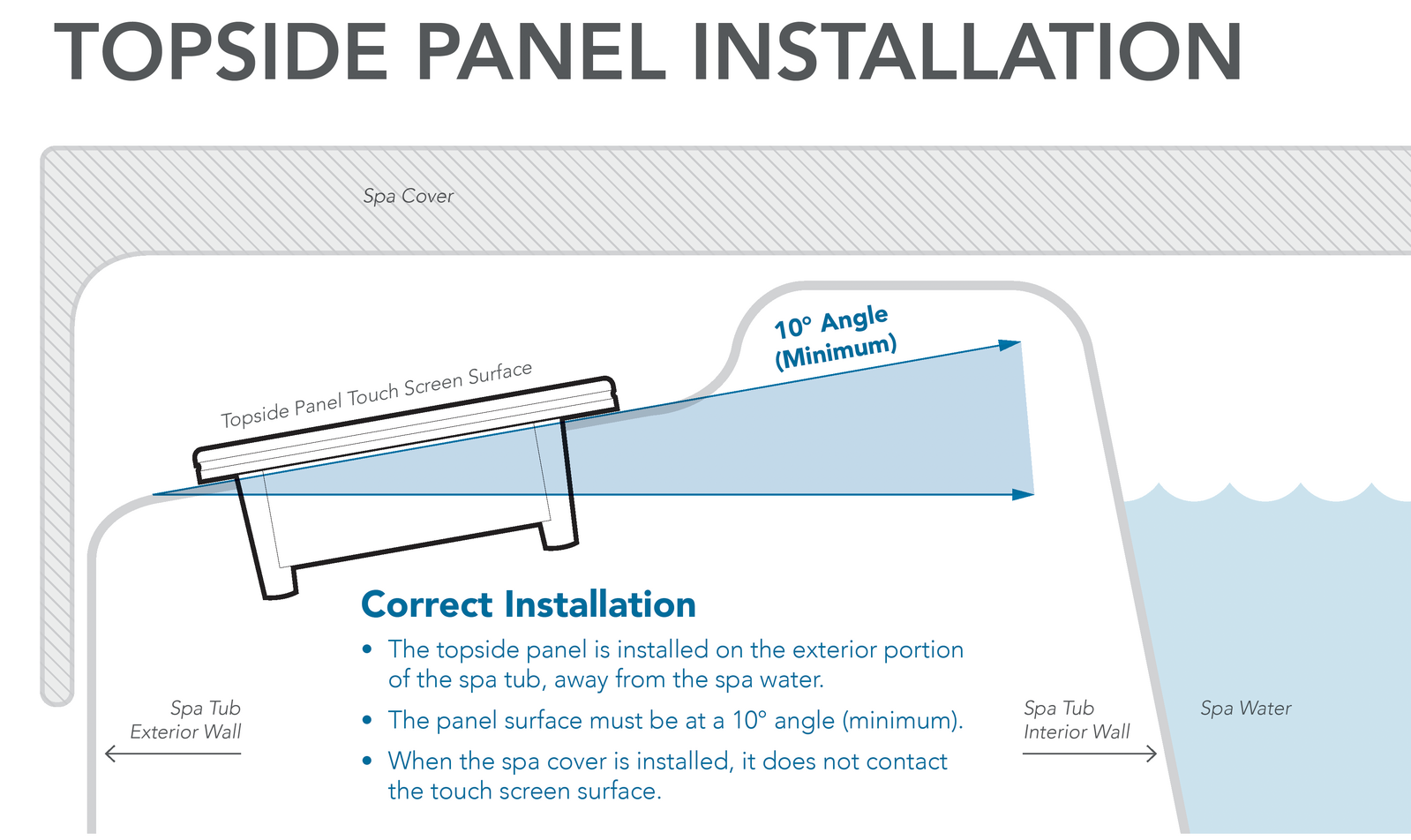

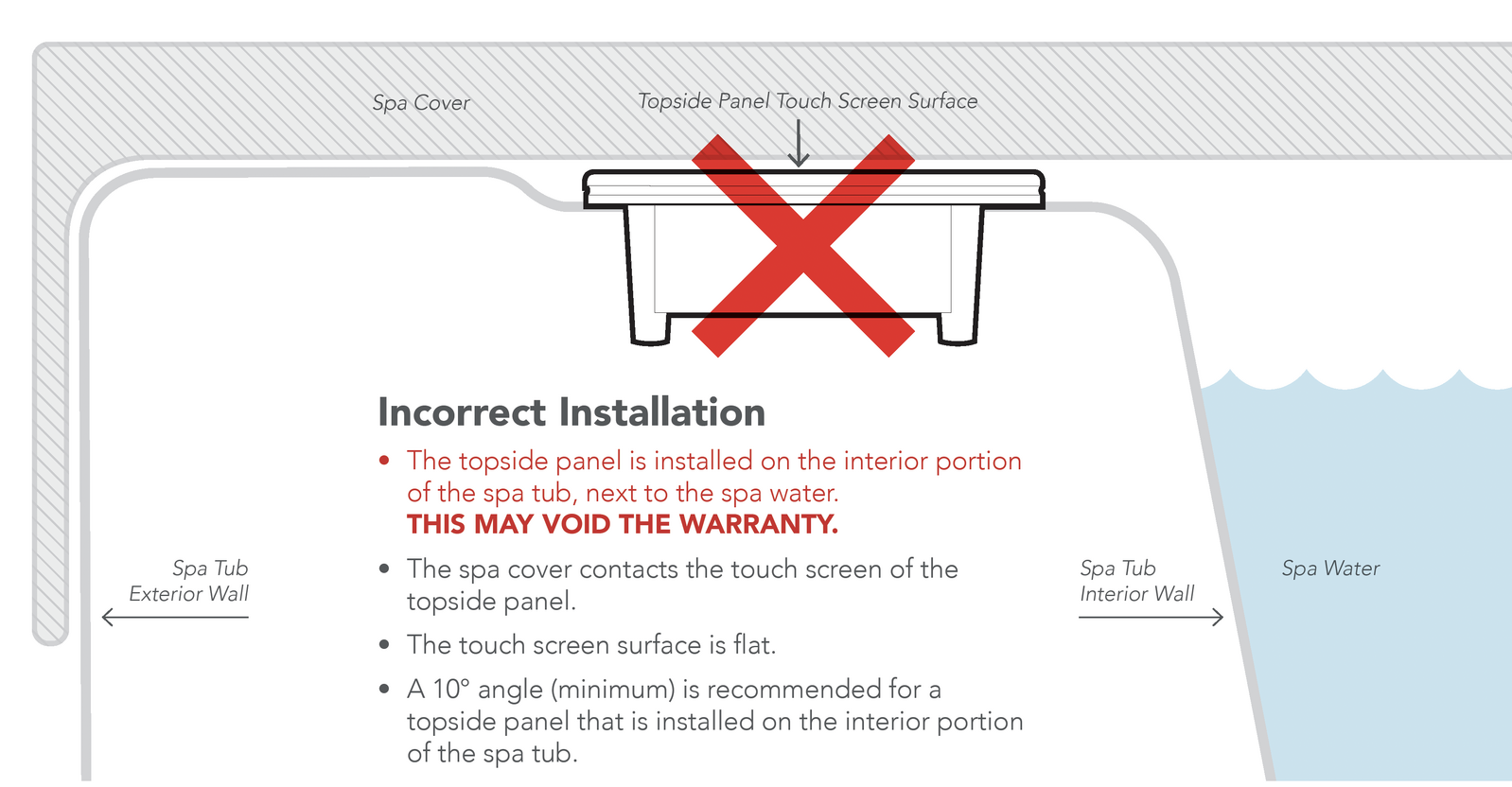

2mm thick glass top - overall height above the spa shell is 13mm - ensure its positioned so it is not in contact with the spa cover
Do not install in spa moisture zone

Do not install/fit where there is a risk of excess pressure applied to the screen - ie do not place spa steps near the touchpad, to prevent a user standing or falling onto it, to minimise risk of damage.
