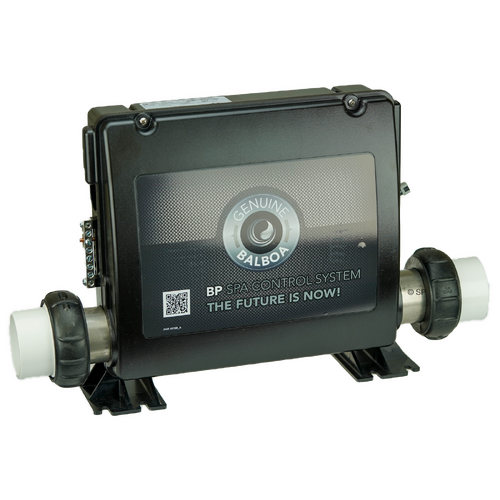

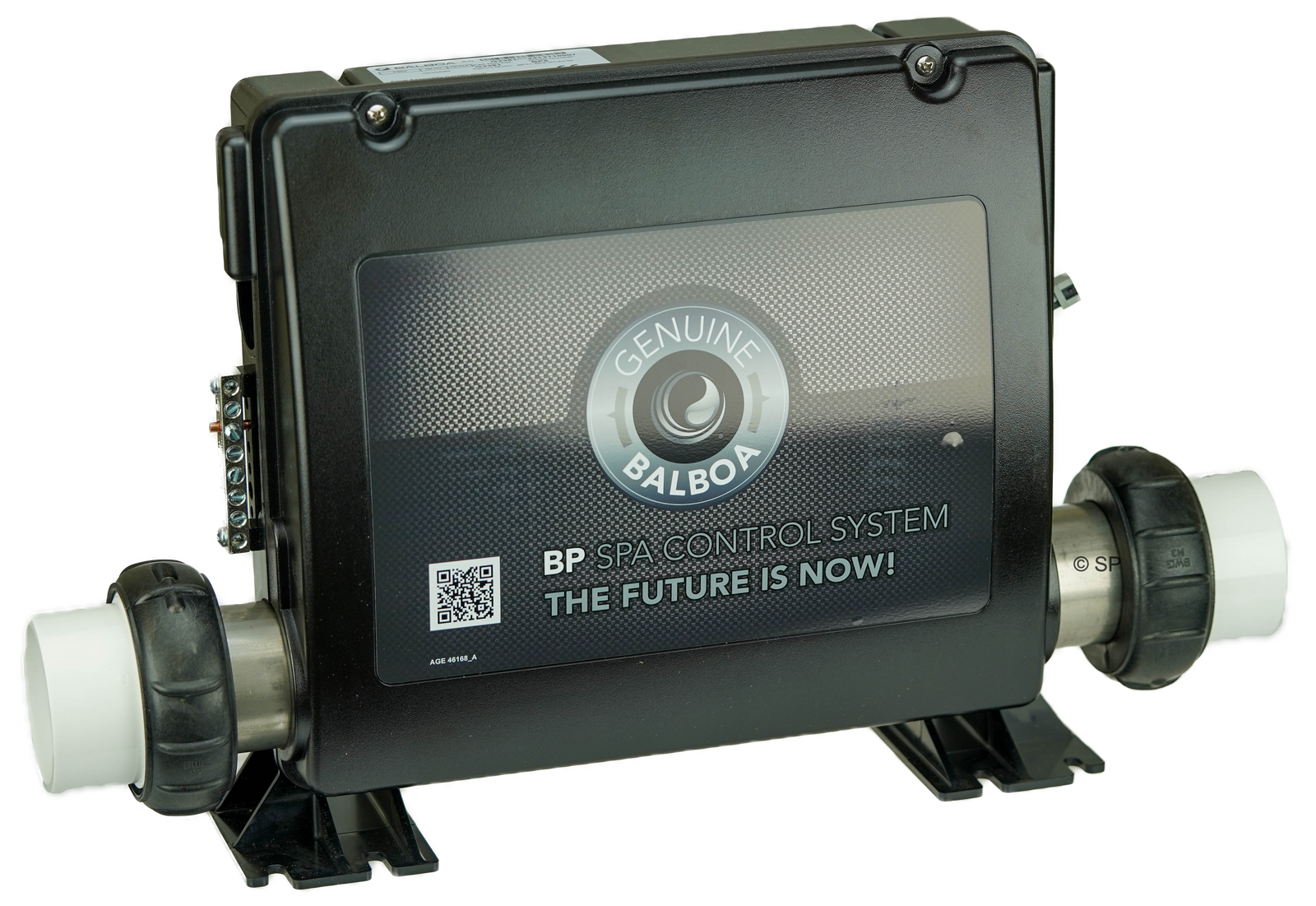

Balboa BP8 Universal BP601 series Retrofit Spa Control Pack - 3kw

Balboa BP8 retrofit spa pack complete with in line heater

18 different Setup configurations combining BP6013G3 with equipment Setups from BP6013G1
One pack to replace all BP601 systems including:
BP601G1
BP6013G1
BP6013G2
BP6013G3
SIBP601X

Suits up to:
Circulation pump plus 3 single speed jet pumps, (or circ pump, 2 speed pump and 2 x single speed jet pumps)
2 speed pump plus 2 single speed jet pumps,
1 x blower, (or possibly pump 4)
ozone,
light.
3kw heater

BWA wifi module/smartphone compatible with separately purchased BWA module, or
CMS wifi with seperate CMS module or Spatouch 4 touchpad.

Use in conjunction with existing TP series topside panels including the following (touchpad option may depend on output configurations):
TP200,
TP400,
TP500,
TP600,
TP700/740,
TP800 colour touchpad,
All SpaTouch colour touchscreen touchpads

Designed as a universal replacement pack (with separately sold touchpad) for almost all other Balboa spa control models including:
GS series,
GL series,
BP601 series,
BP21 series,
Revolution, colossus, Viper and more.

Touchpad hole will need to be modified for all touchpad options.

32A max load single phase, 16A 3 phase.
This load must not be exceeded - if configured for 3 x jet pumps it may be necessary to load limit to max 2 pumps simultaneously depending on amperage.


***IMPORTANT - there are multiple variations of spa packs and they are not necessarily cross compatible. Ensure you are purchasing to suit a compatible spa pack.
Does not suit Microsilk **
Programming must be set PRIOR to connection any 2 speed pump.
