AMP cordset - 4 core - 2 speed pump

$25.30
In Stock

92 In Stock

SKU:
amp4
Shipping:
Calculated at checkout


Product Description

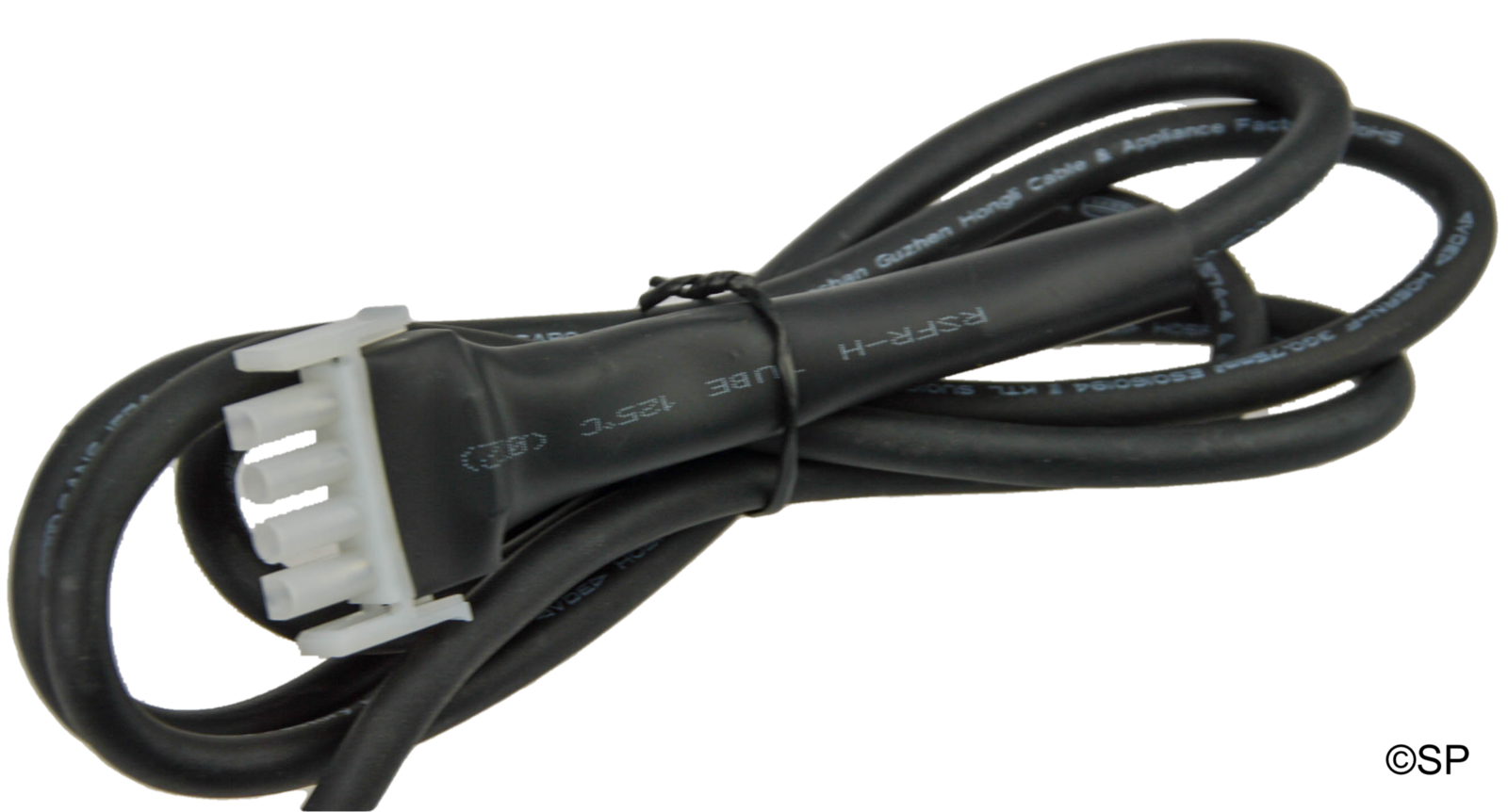

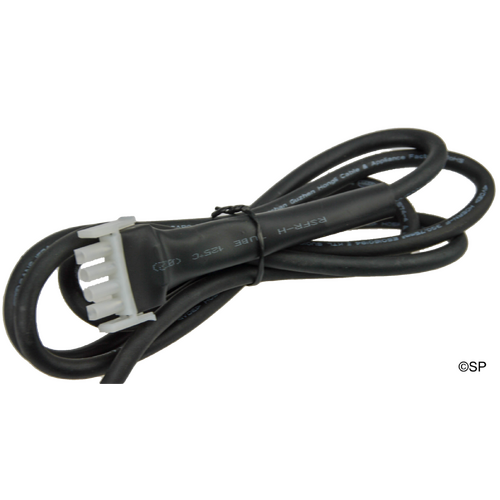

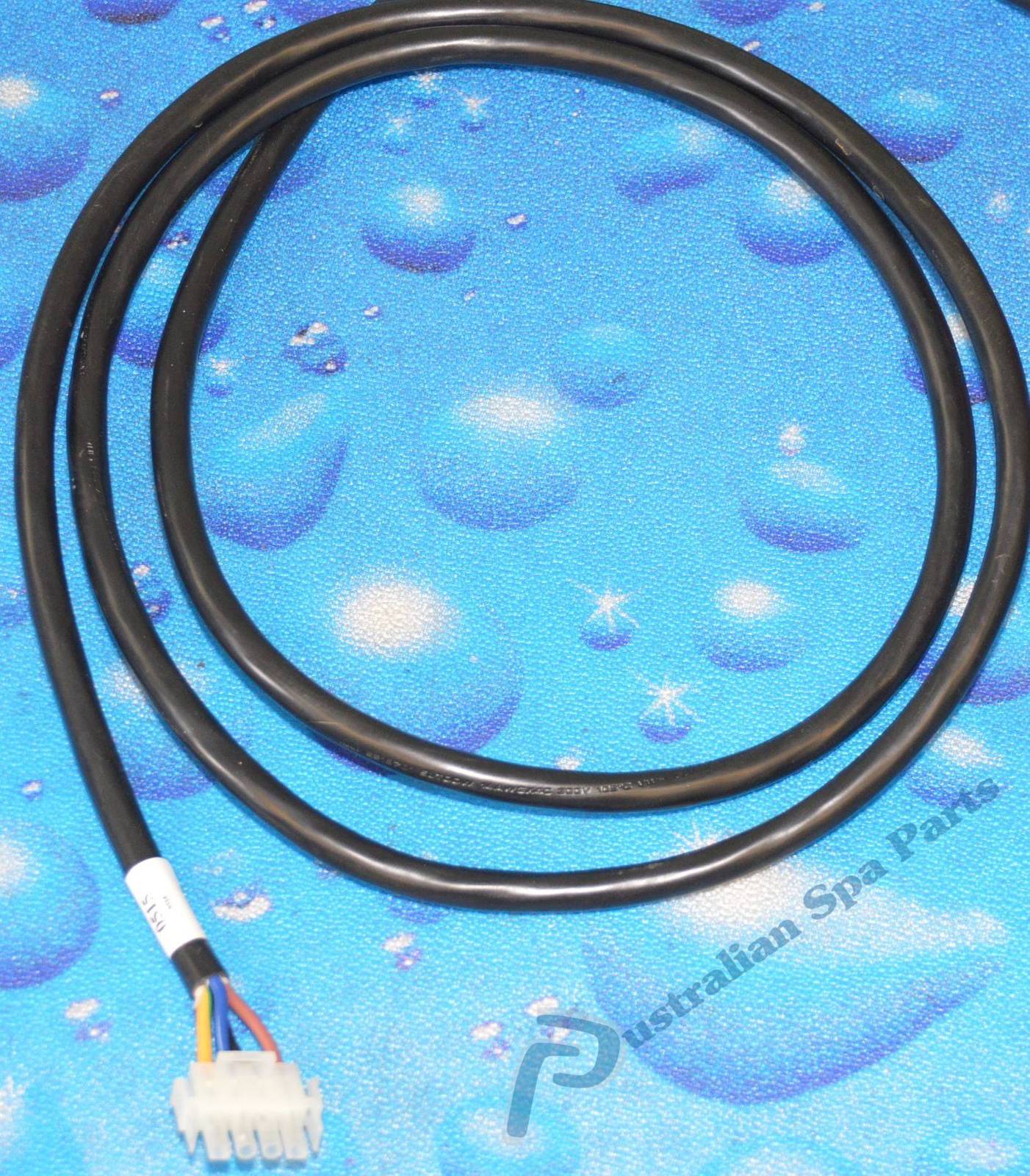

AMP 4 core cordset with 4 pin plug - for use with 2 speed pumps
Use with Aeware in.y series spa controllers, Balboa GS, GL and BP series spa controllers, Zink/Ethink KL8800 and KL8-3A sereis, spa-tech C-II and C-III series, and others.
* Not for use with Spanet XS or Spaquip controllers which require over moulded plug/cord sets. Ca be used with Spanet SV series controllers provided the cable cover is fixed in place over the sockets/cords.

Wiring colours:
There are 2 industry standard wiring colour configurations for 2 speed pumps
1. High speed - brown, Low speed - black, Neutral - blue, Earth - green/yellow
or
2. High speed - red, Low speed - Black, Neutral - White, Earth - Green

Also note that Davey/Spaquip and LX use opposite colours for high and low speed as follows:
High speed - Black, Low speed - brown, Neutral - blue, Earth - green/yellow

The cord supplied may be configured in any of these 3 wiring configurations. Ensure your electrician checks for correct low/high orientation when connecting.

*All cordsets are new but may have been removed from pumps requiring an alternate cord.
