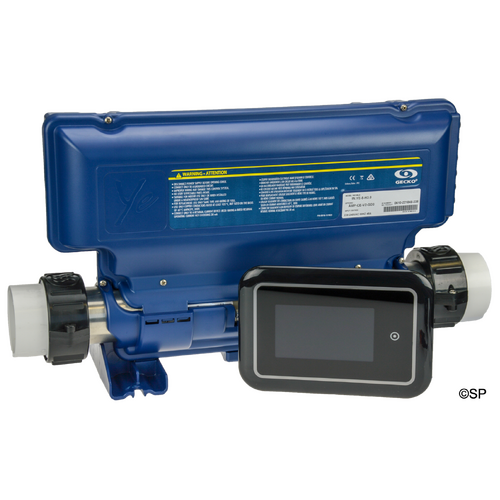

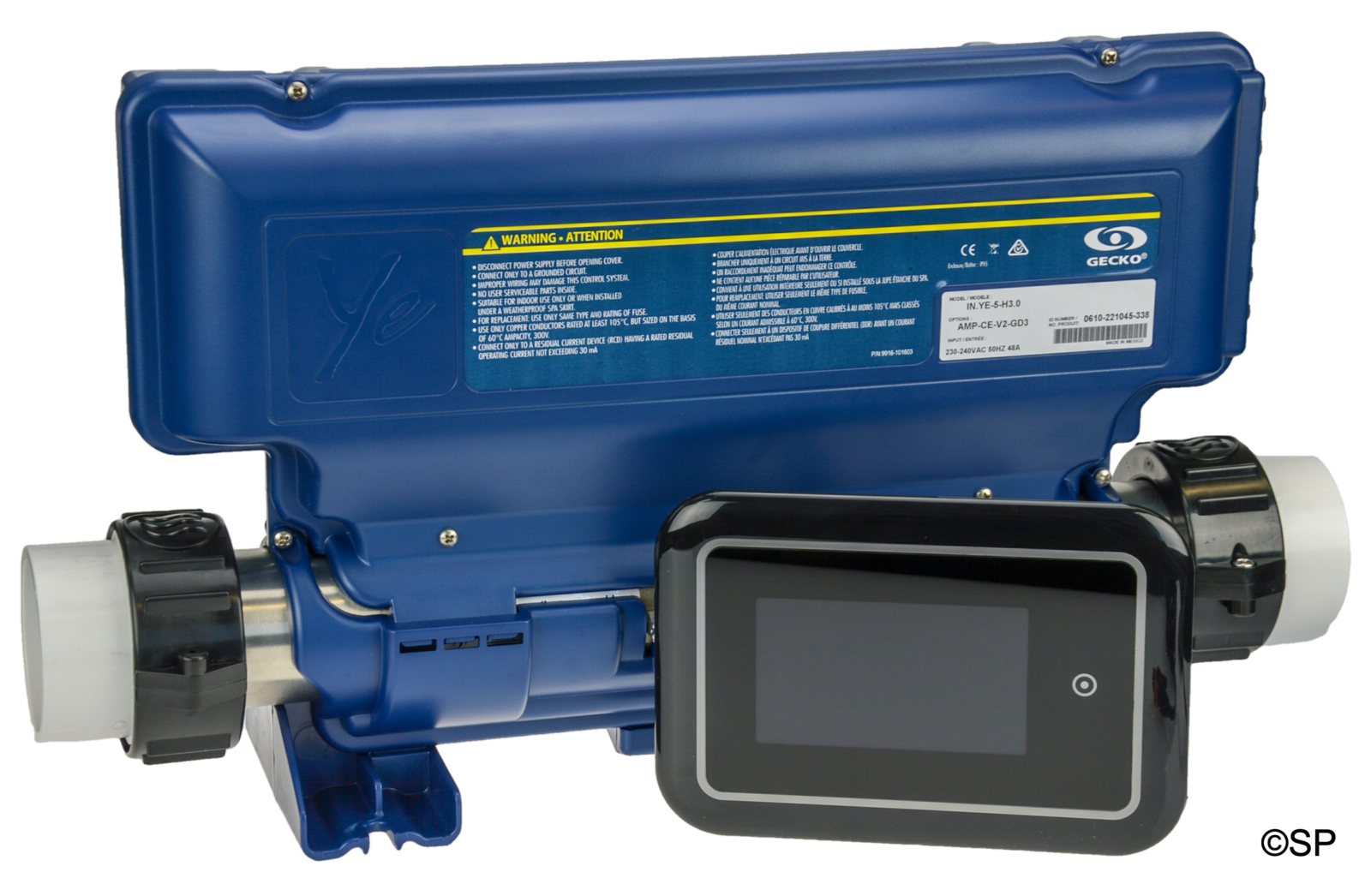

Aeware in.ye-5 Spa Control System Complete with in.k1000 touchscreen & 3.0kw heater

Gecko Aeware in.ye-5 spa pack - Aeware's newest controller with in.k1000 colour touchscreen touchpad.

Universal spa control system - 1-3 pumps plus circulation pump, blower, ozone and light - many combinations possible - 3.0kw heater
Aeware in.ye-5-H3.0 by Gecko Electronics 5 outputs - can accomodate a combination of 5 of the following - 3 pumps, blower, circ pump, ozone, light, aux/audio Output 1 = Pump, output 2 = Pump or Blower, output 3 = Blower or Circulation Pump, output 4 = Ozone, output 5 = 230v supply for Audio system, etc. or 24hr circ pump 3.0kw in-line heater 15" long x 2" stainless steel tube, complete with unions.
Utilises AMP cables to connect to equipment - Pump 1, Pump 2, Blower, Ozone, Circ Pump INCLUDED as per configuration.

All inputs and outputs are plugged directly into the sockets to the side of the circuit board. Pumps etc can also be direct wired to the circuit board relays and terminals with female spade connectors. Incoming power supply is from the left side only through a 32mm hole (32mm gland/conduit fitting and appropriate cable set up required to maintain box seal against entry of vermin, ants, etc.) in.k1000 topside INCLUDED.
230v, 50Hz, 15A - 40A max single phase, or 415v, 50Hz, 20A max two phase. 415v, 50Hz, 16A max three phase.
420mm wide x 270mm high x 115mm deep.
Touchpad 190mm x 131mm

** Please note - overmoulded AMP plugs used with Spaquip/Davey and SpaNet controllers CANNOT be used with Aeware in.y series spa packs as there is insufficent space that is needed with the overmoulding. In those cases the plugs/cords need to be changed to the single insulated USA style AMP plug/cord or 6.3mm spade terminated cables
** Maximum pump current draw for Pump 1, Ozone, Circ pump and direct socket combined is 15A, Pump 2 & 3/blower combined is 20A
Maximum current draw of any individual pump is 15A
